IPS2050HTR - STMicroelectronics

Description: High efficiency, high-side switch with extended diagnostics and smart driving for capacitive loads

Download IPS2050HTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

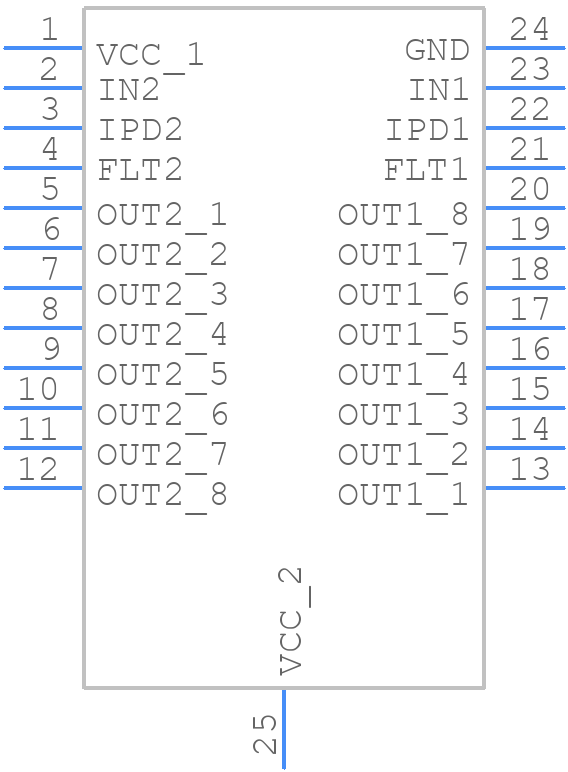

IPS2050HTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
IPS2050HTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24 1
click to zoom
3D Models
IPS2050HTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24 1
click to zoom

IPS2050HTR Details

  • Manufacturer Part Number:

    IPS2050HTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Peak Current Limit-Nom:

    2.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.42 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    60 µs

  • Turn-on Time:

    25 µs

  • Width:

    7.5 mm

IPS2050HTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal dissipation.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current rating according to the temperature derating curve provided in the datasheet, and to ensure good thermal management through proper PCB design and heat sinking.
  • STMicroelectronics recommends a gate drive circuit with a low impedance output stage and a high current capability to ensure fast switching times and low power losses. A recommended gate drive circuit is shown in the application note AN4571.
  • To protect the device from overvoltage and overcurrent conditions, it is recommended to use a voltage clamp circuit and a current sense resistor in series with the device, along with a fuse or a current limiter to prevent damage from excessive currents.
  • For high-power applications, STMicroelectronics recommends a forced-air cooling system or a liquid cooling system to ensure effective heat removal and to prevent overheating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPS2050HTR Overview

Use the download button to access the IPS2050HTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPS20, or try a keyword search, such as Peripheral Drivers
