IPS2550DE1R - Renesas Electronics

Description: The IPS2550 is an AEC-Q100 Grade 0 automotive-qualified, inductive position sensor IC capable of providing the absolute rotor position as sine and cosine. This IC uses the physical principle of Eddy currents to detect the position of a simple metallic target moving above a set of coils, consisting of one transmitter and two receivers. The output interface can be configured as single-ended, for higher system cost effectiveness, or differential, to better reject common mode disturbers. The IPS2550 can be used

Download IPS2550DE1R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

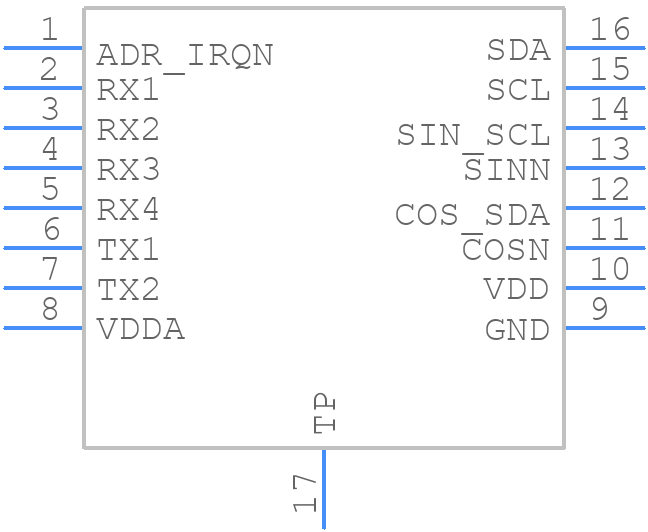

IPS2550DE1R - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
IPS2550DE1R - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 16-TSSOP-ThermalPad
click to zoom
3D Models
IPS2550DE1R - Renesas Electronics - 3D model - Small Outline Packages - 16-TSSOP-ThermalPad
click to zoom

IPS2550DE1R Details

  • Manufacturer Part Number:

    IPS2550DE1R

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    ENG16P3

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    ITS ALSO OPERATES 5V NOMINAL SUPPLY

  • Body Breadth:

    4.4 mm

  • Body Height:

    1.05 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    12 mA

  • Operating Temperature-Max:

    160 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    0.66-2.64V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,INDUCTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

IPS2550DE1R Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for IPS2550DE1R is -40°C to 125°C.
  • To ensure EMC, follow the layout guidelines in the datasheet, use a ground plane, and add decoupling capacitors as recommended. Additionally, consider using shielding and filtering to minimize electromagnetic interference.
  • The maximum current rating for IPS2550DE1R is 1.5A per channel, with a total current limit of 3A for all channels combined.
  • The IPS2550DE1R can be programmed using the Renesas Flash Development Toolkit (FDT) or other third-party programming tools. Consult the datasheet and programming manual for specific instructions.
  • The VCC pin is the power supply pin for the internal logic and analog circuits. It should be connected to a stable power source, typically 3.3V or 5V, depending on the application.
