The maximum operating temperature range for IPT007N06NATMA1 is -40°C to 150°C.
To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
The maximum current rating for IPT007N06NATMA1 is 7A, but it's essential to consider the device's thermal limitations and ensure proper cooling to prevent overheating.
Yes, IPT007N06NATMA1 can be used in high-frequency applications up to 1 MHz, but it's essential to consider the device's switching characteristics and ensure proper layout and design to minimize parasitic inductance and capacitance.
To protect IPT007N06NATMA1 from ESD, it's essential to follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats, and ensuring that the device is properly grounded during assembly and testing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IPT007N06NATMA1 Overview

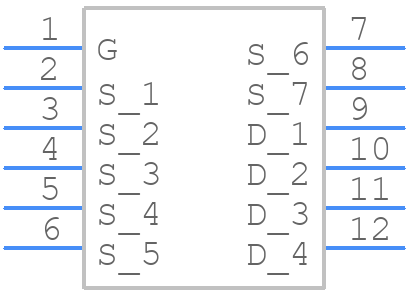

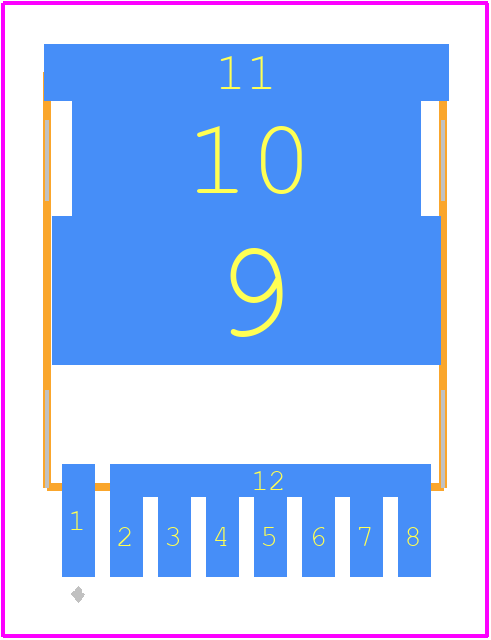

Use the download button to access the IPT007N06NATMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IPT00,
or try a keyword search, such as Power Field-Effect Transistors
