IPT1-105-01-L-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

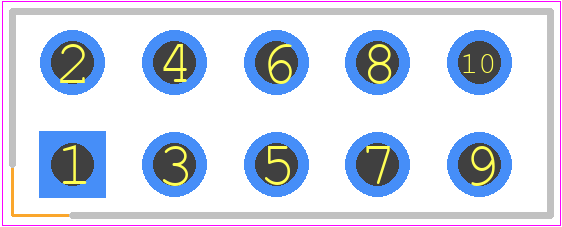

PCB Footprints

IPT1-105-01-L-D - SAMTEC PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - IPT1-105-01-L-D

click to zoom

3D Models

IPT1-105-01-L-D - SAMTEC - 3D model - Header, Receptacle - Straight PTH Box - IPT1-105-01-L-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPT1-105-01-L-D
Part Number IPT1-105-01-L-D
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Header, Receptacle - Straight PTH Box
Footprint Name Header, Receptacle - Straight PTH Box - IPT1-105-01-L-D
Released Date Jan 28, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPT1-105-01-L-D Details

Manufacturer Part Number:
IPT1-105-01-L-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
MINI MATE, SHROUDED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
10
UL Flammability Code:
94V-0

IPT1-105-01-L-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPT1-105-01-L-D connector is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the IPT1-105-01-L-D connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, automotive, and industrial control systems.
Yes, the IPT1-105-01-L-D connector is designed to operate in harsh environments, including high temperatures up to 125°C and high humidity. However, it's recommended to consult with Samtec's application engineers for specific environmental requirements.
The IPT1-105-01-L-D connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
Yes, the IPT1-105-01-L-D connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries.

Trust Checks

Community Provided

System Verified

Community Approved

IPT1-105-01-L-D Overview

Use the download button to access the IPT1-105-01-L-D schematic symbol, PCB footprint, and 3D model.
