IPT1-105-06-L-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

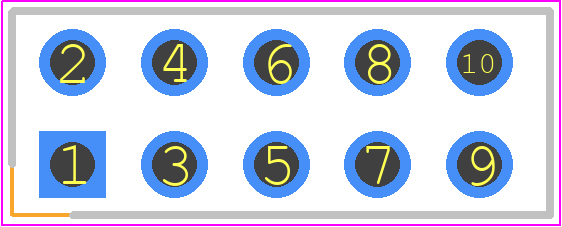

IPT1-105-06-L-D - SAMTEC PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - PHKD13N03LT---

click to zoom

3D Models

IPT1-105-06-L-D - SAMTEC - 3D model - Header, Receptacle - Straight PTH Box - PHKD13N03LT---

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPT1-105-06-L-D
Part Number IPT1-105-06-L-D
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Header, Receptacle - Straight PTH Box
Footprint Name Header, Receptacle - Straight PTH Box - PHKD13N03LT---
Released Date Mar 11, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPT1-105-06-L-D Details

Manufacturer Part Number:
IPT1-105-06-L-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
MINI MATE, SHROUDED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
10
UL Flammability Code:
94V-0

IPT1-105-06-L-D Frequently Asked Questions (FAQs)

The recommended torque for the screw locks on IPT1-105-06-L-D is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, IPT1-105-06-L-D is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for IPT1-105-06-L-D is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
While IPT1-105-06-L-D is designed for standard 1.57 mm (0.062 in) PCB thickness, Samtec offers custom solutions for non-standard PCB thicknesses. Contact Samtec's technical support for guidance on custom designs.
The mating cycle life for IPT1-105-06-L-D is 500 cycles minimum according to Samtec's datasheet. However, this can vary depending on the application and environmental conditions.

Trust Checks

Community Provided

System Verified

Community Approved

IPT1-105-06-L-D Overview

Use the download button to access the IPT1-105-06-L-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IPT1-, or try a keyword search, such as Power Connectors
