Part Image

IPT1-115-01-S-D - SAMTEC

Description: Connector Header Through Hole 30 position 0.100" (2.54mm)

Download IPT1-115-01-S-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPT1-115-01-S-D - SAMTEC - PCB symbol
click to zoom

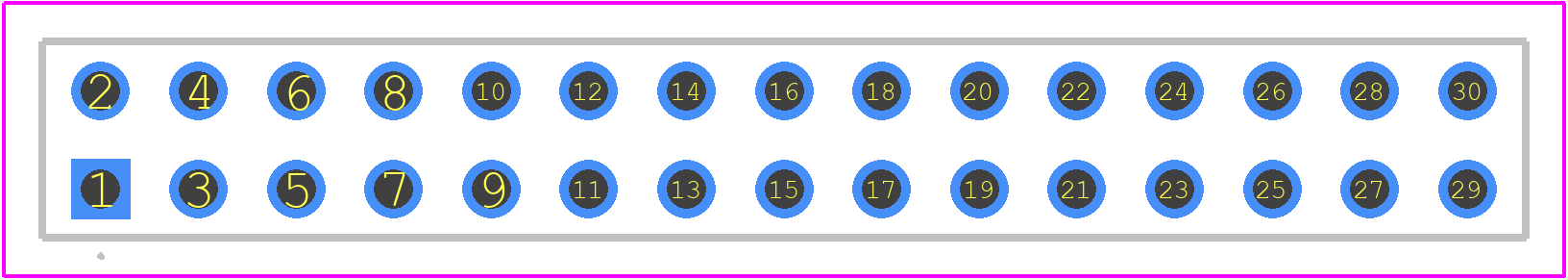

PCB Footprints
IPT1-115-01-S-D - SAMTEC PCB footprint - Other - Other - IPT1-115-01-S-D-1
click to zoom
3D Models
IPT1-115-01-S-D - SAMTEC - 3D model - Other - IPT1-115-01-S-D-1
click to zoom

IPT1-115-01-S-D Details

  • Manufacturer Part Number:

    IPT1-115-01-S-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    SHROUDED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

IPT1-115-01-S-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on IPT1-115-01-S-D is 1.5-2.5 in-lbs (0.17-0.28 Nm).
  • Yes, IPT1-115-01-S-D is designed to withstand high-vibration applications. Samtec's IPT series is tested to meet the requirements of IEC 61373 Cat. 2, which includes vibration testing up to 57.3 m/s² (20-2000 Hz).
  • The operating temperature range for IPT1-115-01-S-D is -55°C to +125°C. However, it's recommended to derate the current carrying capacity at higher temperatures.
  • Yes, IPT1-115-01-S-D is compatible with lead-free soldering processes. Samtec's IPT series is designed to meet the requirements of RoHS and WEEE directives.
  • The mating cycle life for IPT1-115-01-S-D is 500 cycles minimum. However, this can vary depending on the application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPT1-115-01-S-D Overview

Use the download button to access the IPT1-115-01-S-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPT1-, or try a keyword search, such as Power Connectors
