IPT1-115-02-L-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

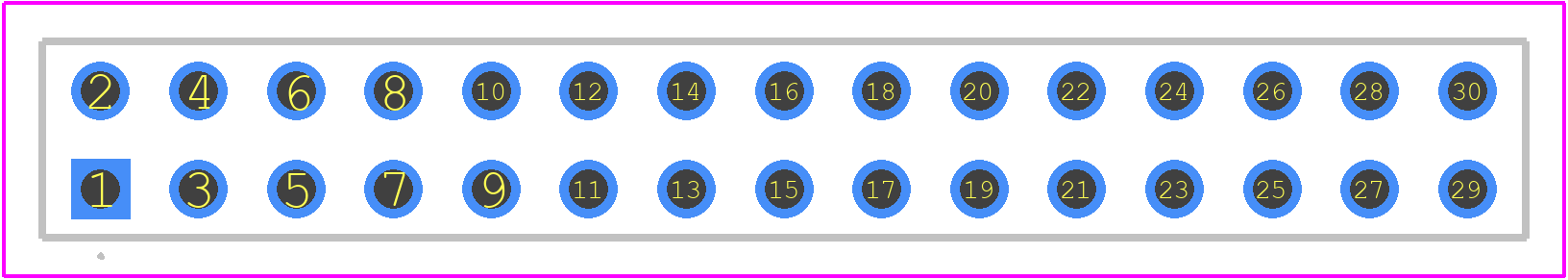

IPT1-115-02-L-D - SAMTEC PCB footprint - Other - Other - IPT1-115-02-L-D-2

click to zoom

3D Models

IPT1-115-02-L-D - SAMTEC - 3D model - Other - IPT1-115-02-L-D-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPT1-115-02-L-D
Part Number IPT1-115-02-L-D
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - IPT1-115-02-L-D-2
Released Date Oct 7, 2025
Last Modified Date Oct 7, 2025 11:11 AM UTC
Pinout / Pin List Click Here (Member Only)

IPT1-115-02-L-D Details

Manufacturer Part Number:
IPT1-115-02-L-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
MINI MATE, SHROUDED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
30
UL Flammability Code:
94V-0

IPT1-115-02-L-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on IPT1-115-02-L-D is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPT1-115-02-L-D is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand up to 20 Gs of vibration.
The IPT1-115-02-L-D is rated for operating temperatures from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult Samtec's environmental testing reports for specific details.
The IPT1-115-02-L-D has a mating cycle life of at least 500 cycles, according to Samtec's testing and reliability data.
While the IPT1-115-02-L-D is designed for 1.57 mm PCB thickness, Samtec recommends consulting their application notes for guidance on using it with other PCB thicknesses. In general, the connector can accommodate PCB thicknesses from 1.2 mm to 2.4 mm.
