The recommended torque for the screw locks on IPT1-125-01-L-D is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, IPT1-125-01-L-D is designed to withstand high-vibration applications. Samtec's IPT series is tested to meet the requirements of IEC 61373 Category II, which includes vibration testing up to 57.3 m/s² (20-2000 Hz).
The maximum operating temperature for IPT1-125-01-L-D is 125°C (257°F) according to the datasheet. However, it's recommended to derate the current carrying capacity of the connector at higher temperatures to ensure reliable operation.
Yes, IPT1-125-01-L-D is compatible with lead-free soldering processes. Samtec's IPT series is designed to meet the requirements of RoHS and WEEE directives, and can withstand the higher temperatures associated with lead-free soldering.
The mating cycle life of IPT1-125-01-L-D is 500 cycles minimum according to Samtec's datasheet. This means the connector can withstand at least 500 mating cycles without significant degradation in performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IPT1-125-01-L-D Overview

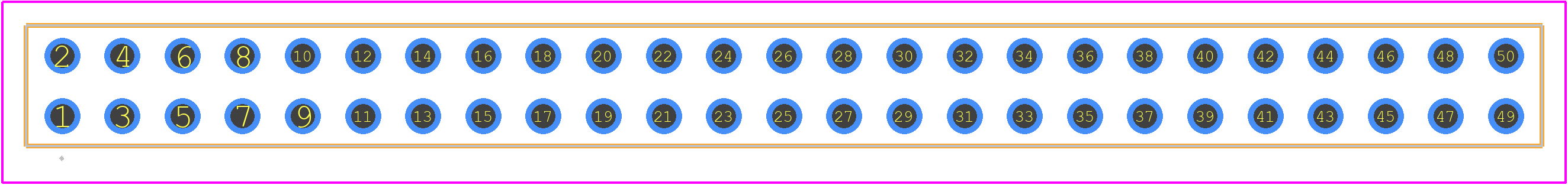

Use the download button to access the IPT1-125-01-L-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPT1-,
or try a keyword search, such as Power Connectors
