iQG48025A120V-101-R - TDK Lambda

Description: DC-DC Converters, Power module type, Output: 300W, 12V, Isolated type

Download iQG48025A120V-101-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
iQG48025A120V-101-R - TDK Lambda - PCB symbol
click to zoom
PCB Footprints

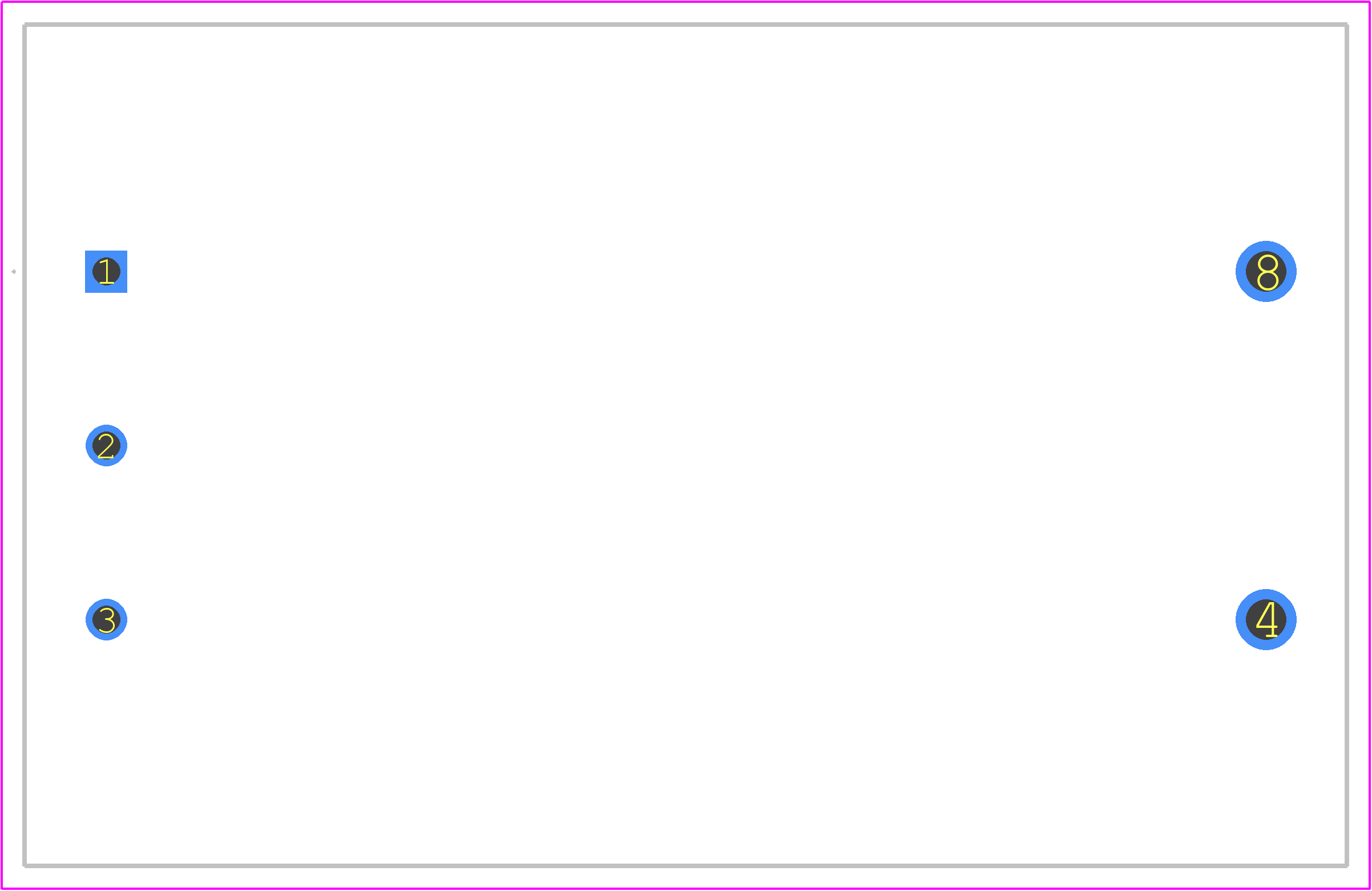

iQG48025A120V-101-R - TDK Lambda PCB footprint - Other - Other - IQG48025A120V-101-R-3
click to zoom
3D Models
iQG48025A120V-101-R - TDK Lambda - 3D model - Other - IQG48025A120V-101-R-3
click to zoom

iQG48025A120V-101-R Details

  • Manufacturer Part Number:

    IQG48025A120V-101-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PACKAGE-8/5

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK-Lambda Corporation

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XXMA-P5

  • Length:

    57.91 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Output Current-Max:

    25 A

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OVER LOAD; OVER VOLTAGE

  • Seated Height-Max:

    13.21 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    300 W

  • Trim/Adjustable Output:

    NO

  • Width:

    36.83 mm

iQG48025A120V-101-R Frequently Asked Questions (FAQs)

  • The IQG48025A120V-101-R can operate in temperatures ranging from -40°C to +85°C, with derating above 60°C.
  • The IQG48025A120V-101-R has a built-in fan for cooling. Ensure good airflow around the power supply, and avoid blocking the air vents. In high-temperature environments, consider adding additional cooling measures.
  • The IQG48025A120V-101-R has a high efficiency of up to 92%. This means that for every 100 watts of output power, the power supply consumes approximately 108 watts from the AC input, minimizing heat generation and reducing your system's overall power consumption.
  • Yes, the IQG48025A120V-101-R is designed for parallel and redundant operation. You can connect multiple units in parallel to increase the total output power or to provide N+1 redundancy for high-availability applications.
  • The IQG48025A120V-101-R meets various safety certifications, including UL60601-1, EN60601-1, and IEC60601-1, ensuring safe operation in medical and industrial environments.
