TDK-Lambda recommends a PCB layout with a solid copper ground plane and a minimum of 2 oz copper thickness to ensure optimal thermal performance. Additionally, keeping the component placement and routing symmetrical can help reduce thermal gradients.
Yes, the IQG48033A120V-101-R is designed to meet the requirements of IEC 60068-2-6 for vibration resistance. However, it's recommended to consult with TDK-Lambda's application engineers to ensure the power supply meets the specific vibration requirements of your application.
According to TDK-Lambda, the MTBF of the IQG48033A120V-101-R is approximately 550,000 hours at 25°C, calculated using the MIL-HDBK-217F method. However, this value may vary depending on the specific operating conditions and environment.
Yes, the IQG48033A120V-101-R can be used in a redundant configuration to achieve high availability and fault tolerance. TDK-Lambda recommends consulting with their application engineers to ensure the power supply is properly configured and connected for redundant operation.
The IQG48033A120V-101-R is designed to operate up to an altitude of 3,000 meters (10,000 feet) above sea level. However, derating may be required for operation at higher altitudes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
iQG48033A120V-101-R Overview

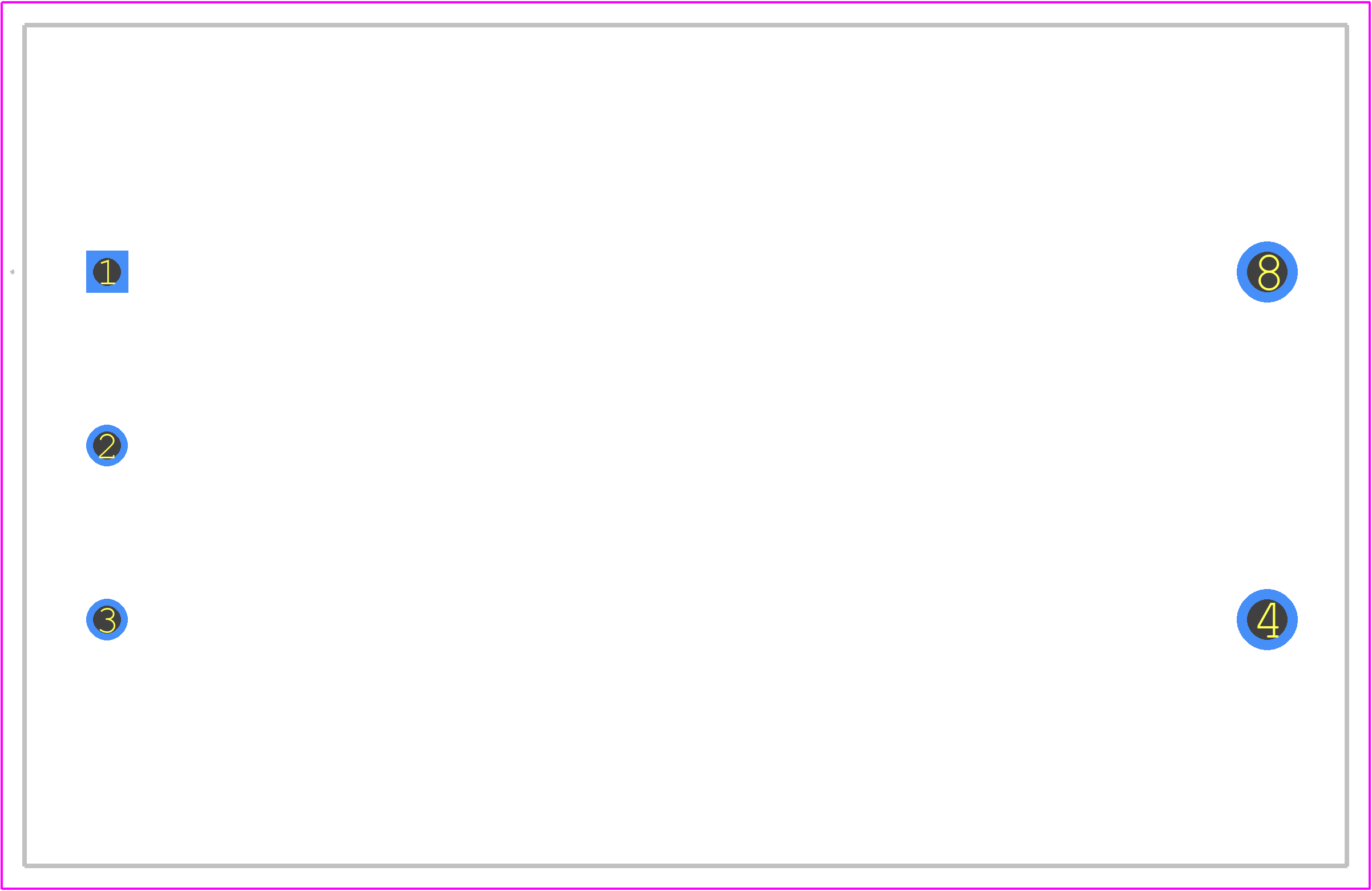

Use the download button to access the iQG48033A120V-101-R schematic symbol, PCB footprint, and 3D model.
