iQG48033A120V-1D9-R footprint, schematic symbol and 3D model by TDK Lambda

Symbol

click to zoom

PCB Footprints

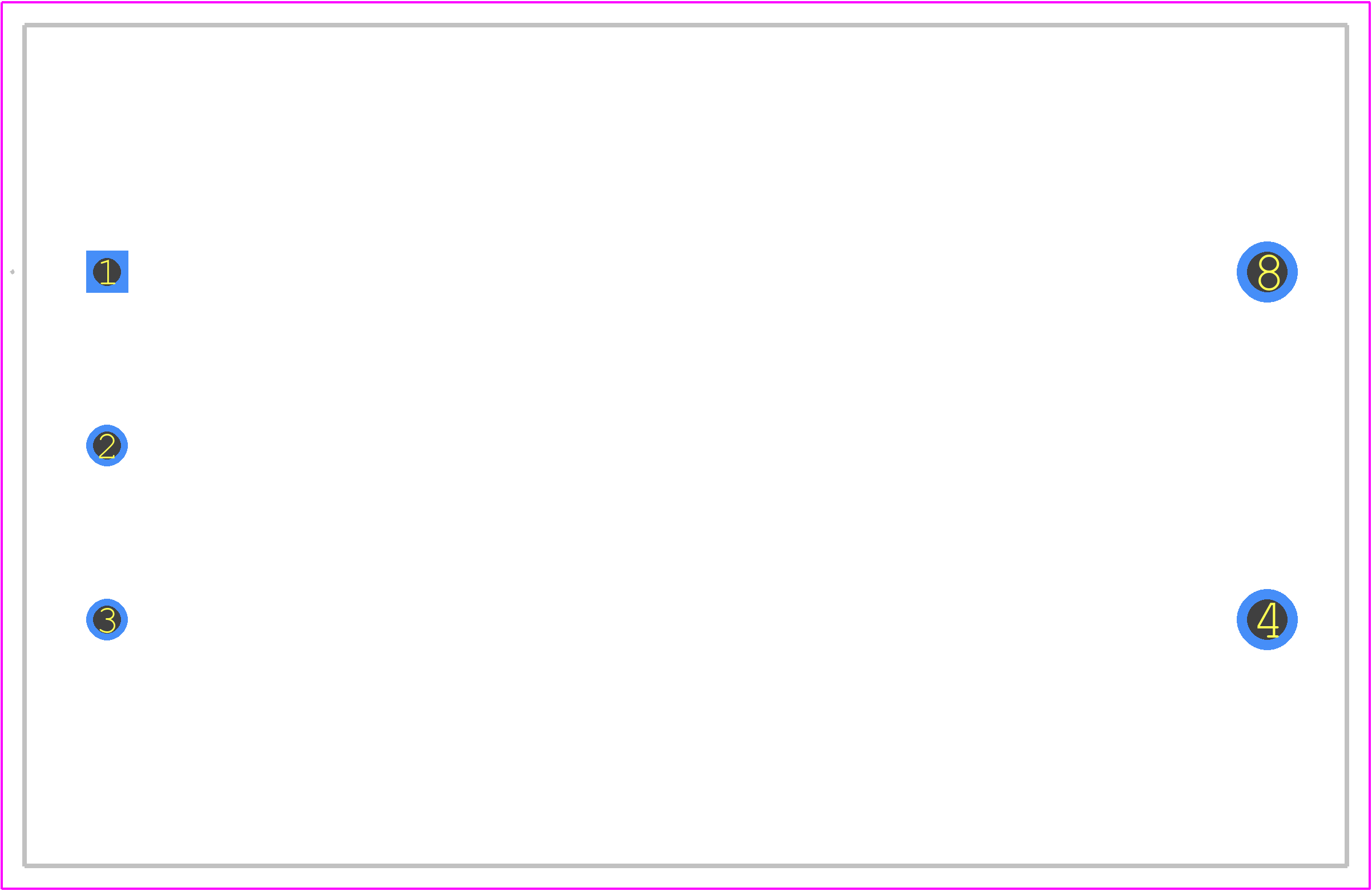

iQG48033A120V-1D9-R - TDK Lambda PCB footprint - Other - Other - iQG48033A120V-1D9-R-1

click to zoom

3D Models

iQG48033A120V-1D9-R - TDK Lambda - 3D model - Other - iQG48033A120V-1D9-R-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for iQG48033A120V-1D9-R
Part Number iQG48033A120V-1D9-R
Manufacturer TDK Lambda
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - iQG48033A120V-1D9-R-1
Released Date Apr 1, 2022
Last Modified Date Aug 1, 2024 9:27 AM UTC
Pinout / Pin List Click Here (Member Only)

iQG48033A120V-1D9-R Details

Manufacturer Part Number:
IQG48033A120V-1D9-R
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
PACKAGE-8/5
ECCN Code:
EAR99
Manufacturer:
TDK-Lambda Corporation
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
94.5%
Input Voltage-Max:
75 V
Input Voltage-Min:
36 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XXMA-P5
Length:
57.91 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
5
Operating Temperature-Max:
124 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
33 A
Output Voltage-Max:
12 V
Output Voltage-Min:
11.6 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER LOAD; OVER VOLTAGE
Ripple Voltage (Main Out):
0.053 Vrms
Seated Height-Max:
13.21 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
396 W
Trim/Adjustable Output:
NO
Width:
36.83 mm

iQG48033A120V-1D9-R Frequently Asked Questions (FAQs)

TDK-Lambda recommends a PCB layout with a solid ground plane and a minimum of 2 oz copper thickness to ensure optimal thermal performance. Additionally, keeping the component away from heat sources and using thermal vias can help to reduce thermal resistance.
Yes, the IQG48033A120V-1D9-R is designed to meet the requirements of IEC 60068-2-6 for vibration resistance. However, it's recommended to consult with TDK-Lambda's application engineers to ensure the power supply meets the specific vibration requirements of your application.
According to TDK-Lambda's reliability data, the MTBF of the IQG48033A120V-1D9-R is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.
The IQG48033A120V-1D9-R is designed to operate in environments with a relative humidity of up to 95% non-condensing. However, it's recommended to consult with TDK-Lambda's application engineers to ensure the power supply meets the specific humidity requirements of your application.
The maximum recommended cable length for the DC output cables is 10 inches (25 cm) to minimize voltage drop and ensure reliable operation. Longer cables may be used, but it's recommended to consult with TDK-Lambda's application engineers to ensure the power supply meets the specific requirements of your application.
