TDK-Lambda recommends a PCB layout with a solid ground plane, minimal thermal impedance, and adequate clearance around the module for airflow. A thermal interface material (TIM) should be used between the module and the heatsink. Refer to the application note for detailed guidelines.
TDK-Lambda recommends following the guidelines in the application note for EMC considerations, including proper grounding, shielding, and filtering. Additionally, ensure that the module is installed in a metal enclosure and that all cables are properly shielded and routed.
The derating curve for the IQL24021A120V-001-R is available in the application note. The curve shows the reduction in output power as a function of temperature, altitude, and input voltage. Engineers should consult the curve to determine the maximum output power under their specific operating conditions.
Yes, the IQL24021A120V-001-R can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper operation and fault tolerance. TDK-Lambda recommends consulting their application note and technical support for guidance on implementing such configurations.
TDK-Lambda provides reliability data and MTBF estimates for the IQL24021A120V-001-R in the datasheet and application note. Engineers should consult these resources to understand the module's reliability characteristics and plan their system design accordingly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
iQL24021A120V-001-R Overview

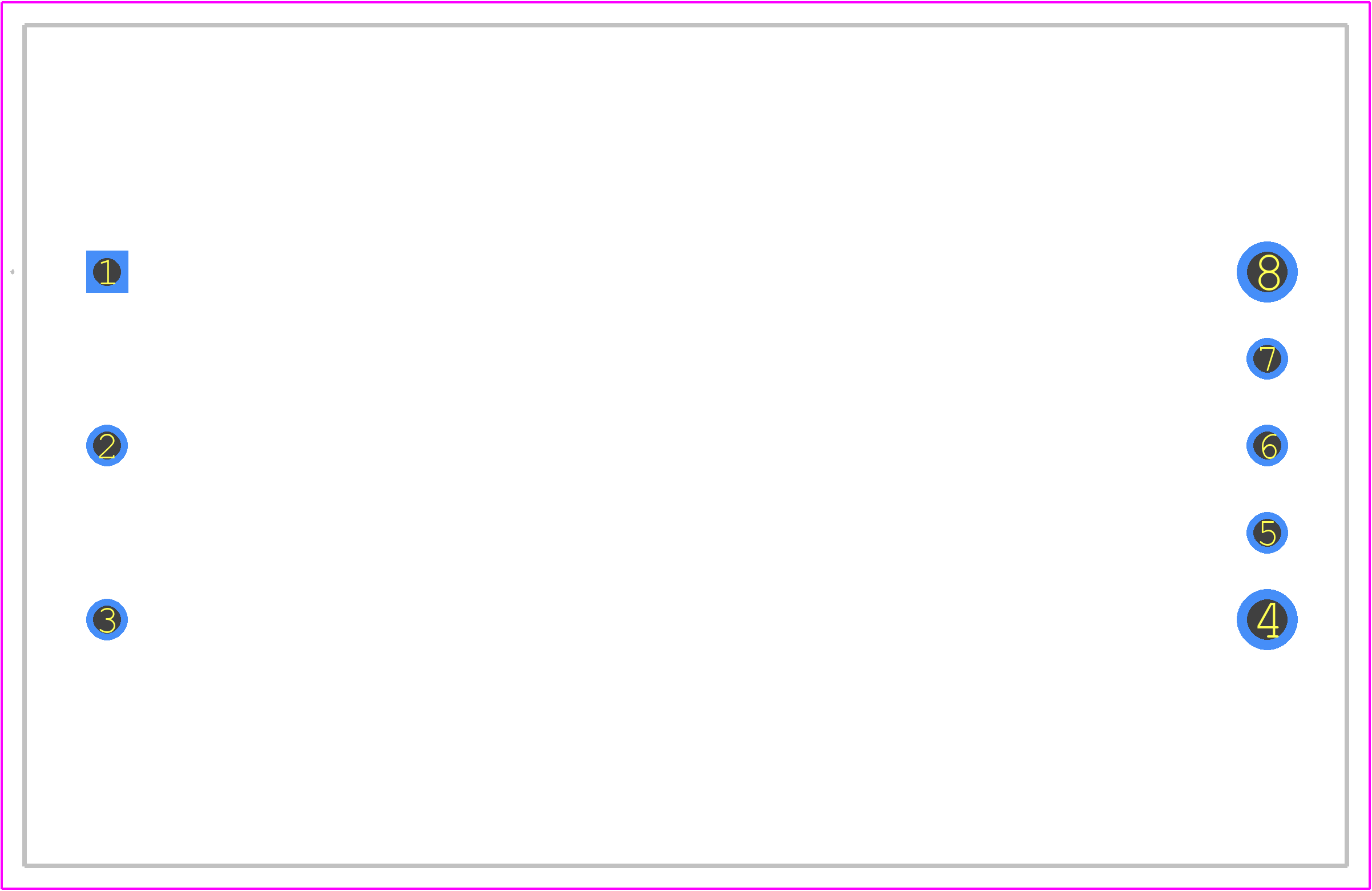

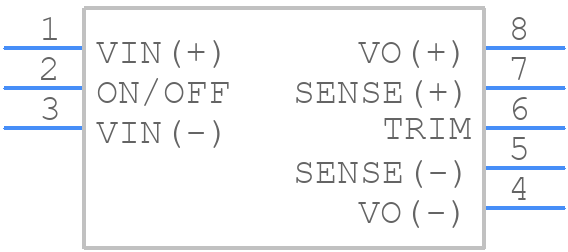

Use the download button to access the iQL24021A120V-001-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iQL24,
or try a keyword search, such as Power Supply Modules
