The recommended PCB layout involves placing the DC-DC converter near the power source, using a solid ground plane, and keeping the input and output capacitors close to the converter. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal derating guidelines.
To ensure EMC and reduce EMI, use a metal enclosure, add EMI filters, and follow proper PCB layout and grounding techniques. Additionally, consider using shielding, filtering, and grounding techniques to minimize radiation and conduction.
Operating the converter outside the recommended temperature range can lead to reduced efficiency, reliability, and lifespan. It may also cause the converter to shut down or malfunction. Always operate the converter within the specified temperature range for optimal performance and reliability.
To troubleshoot issues, start by checking the input voltage, output voltage, and current. Verify the converter is properly connected and configured. Check for signs of overheating, such as excessive temperature or burning smells. Consult the datasheet and application notes for troubleshooting guides and contact TDK-Lambda support if necessary.
The IQL24021A120V-009-R meets various safety certifications, including UL, EN, and IEC standards. Ensure you follow proper safety precautions when handling the converter, such as avoiding electrical shock and ensuring proper insulation. Consult the datasheet and safety documentation for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
iQL24021A120V-009-R Overview

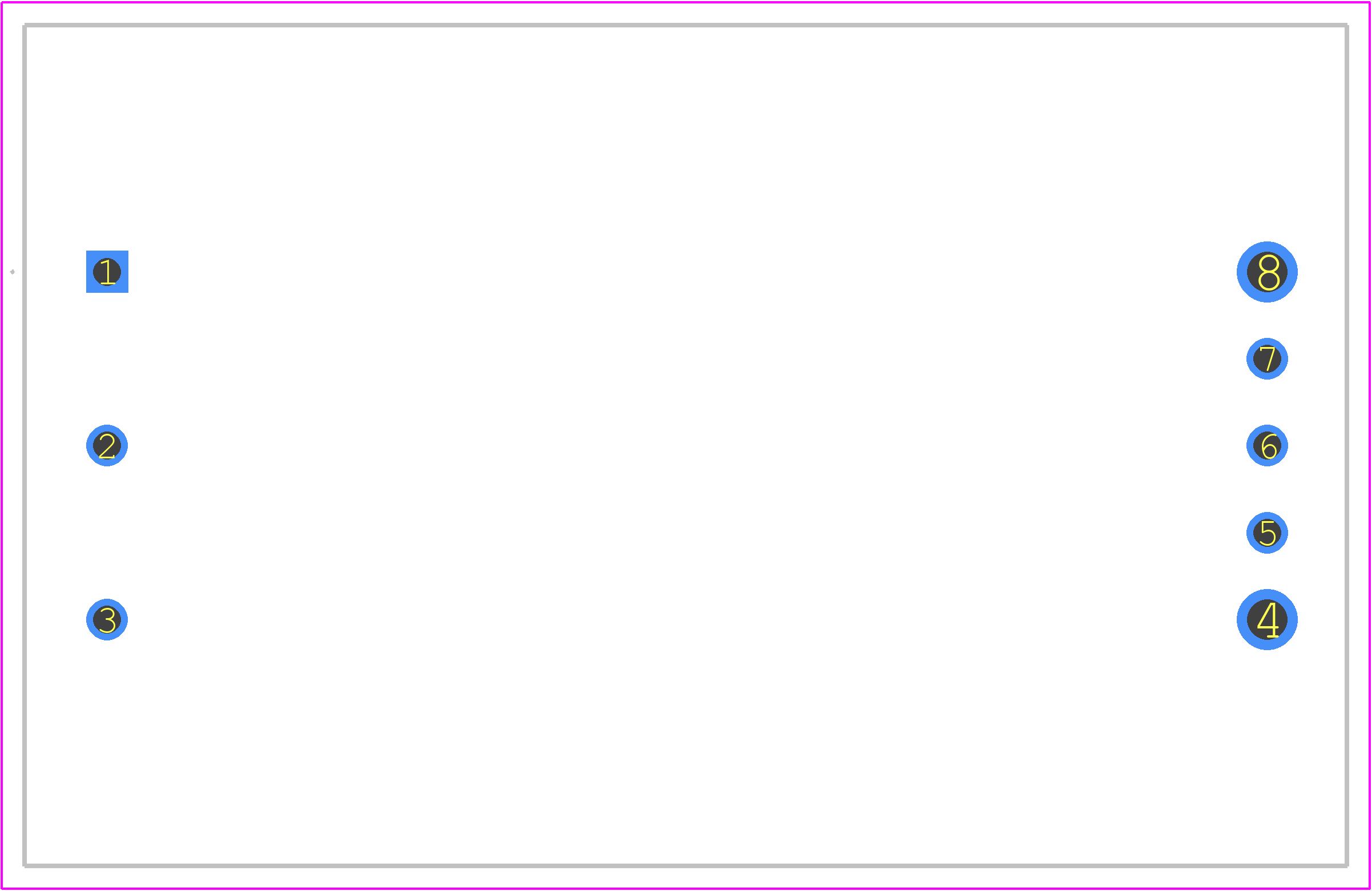

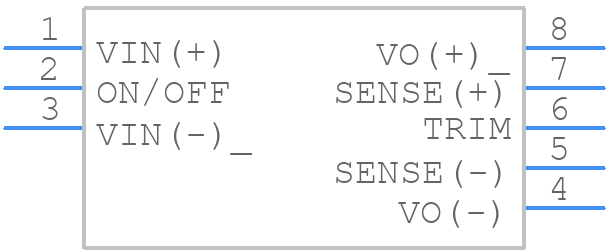

Use the download button to access the iQL24021A120V-009-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iQL24,
or try a keyword search, such as Power Supply Modules
