TDK-Lambda recommends a PCB layout with a solid ground plane, minimal thermal impedance, and adequate clearance around the module for airflow. A thermal interface material (TIM) should be used between the module and the heatsink. Refer to the application note AN-114 for detailed guidelines.
To ensure EMC, follow the guidelines in the datasheet and application notes. Use a metal enclosure, keep cables short and shielded, and use EMI filters if necessary. The module meets CISPR 22 and FCC Part 15 Class B emissions standards.
The derating curve is not explicitly provided in the datasheet. However, TDK-Lambda recommends derating the output power by 1.5% per degree Celsius above 40°C ambient temperature. This ensures reliable operation and prevents overheating.
Yes, the IQL24040A050V-009-R is designed to withstand vibrations up to 10G peak acceleration. However, it's essential to ensure the module is securely fastened to the PCB and the PCB is properly mounted to the chassis. Use a vibration-resistant screw or adhesive to secure the module.
The MTBF of the IQL24040A050V-009-R is approximately 2.5 million hours at 40°C ambient temperature. This indicates a high level of reliability, but it's essential to consider the overall system design, component selection, and operating conditions to ensure optimal system reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
iQL24040A050V-009-R Overview

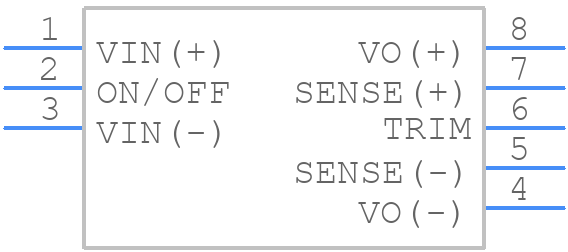

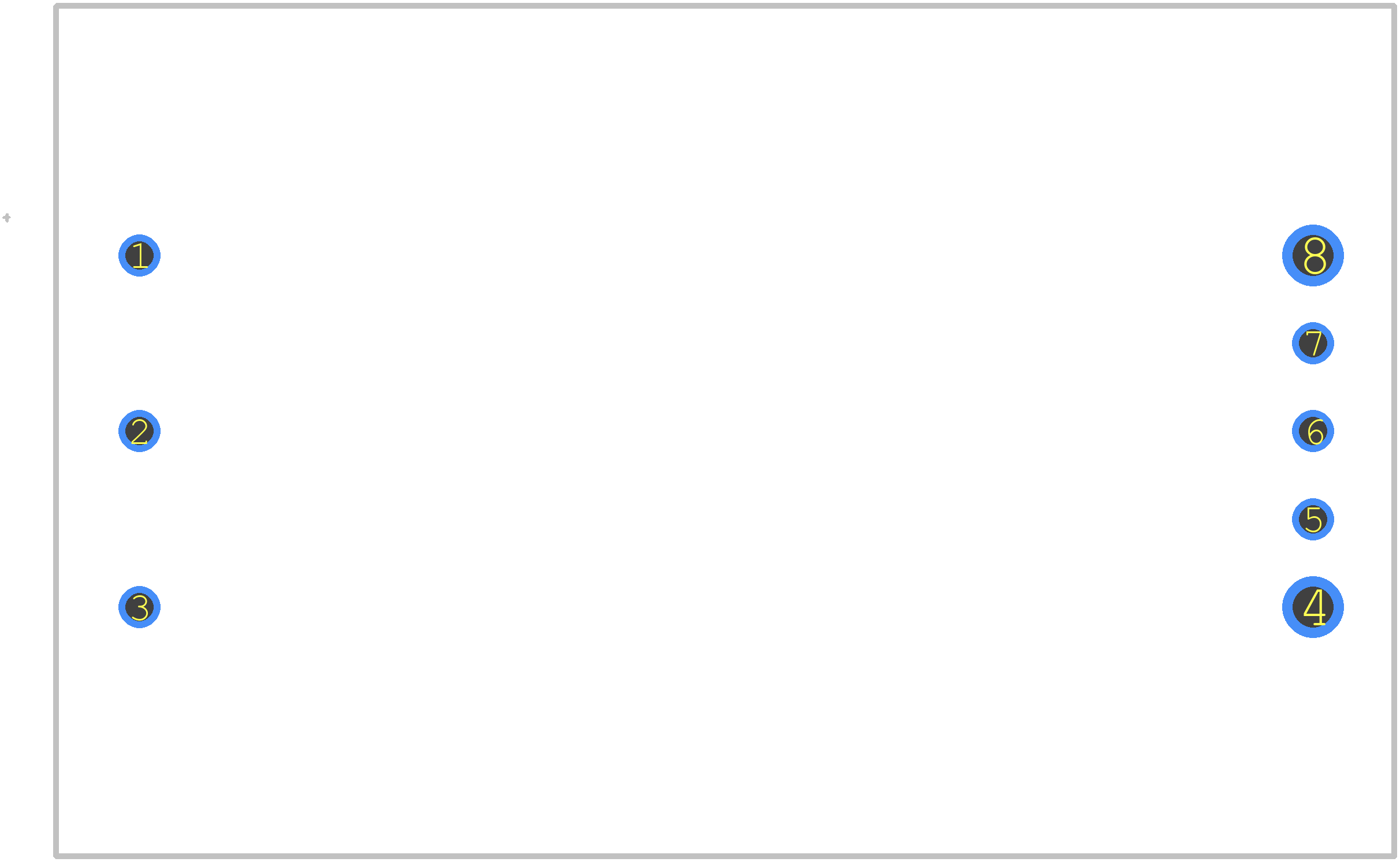

Use the download button to access the iQL24040A050V-009-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iQL24,
or try a keyword search, such as Power Supply Modules
