iQL48011A280V-0A9-R - TDK Lambda

iQL48011A280V-0A9-R Details

• Manufacturer Part Number:

  IQL48011A280V-0A9-R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

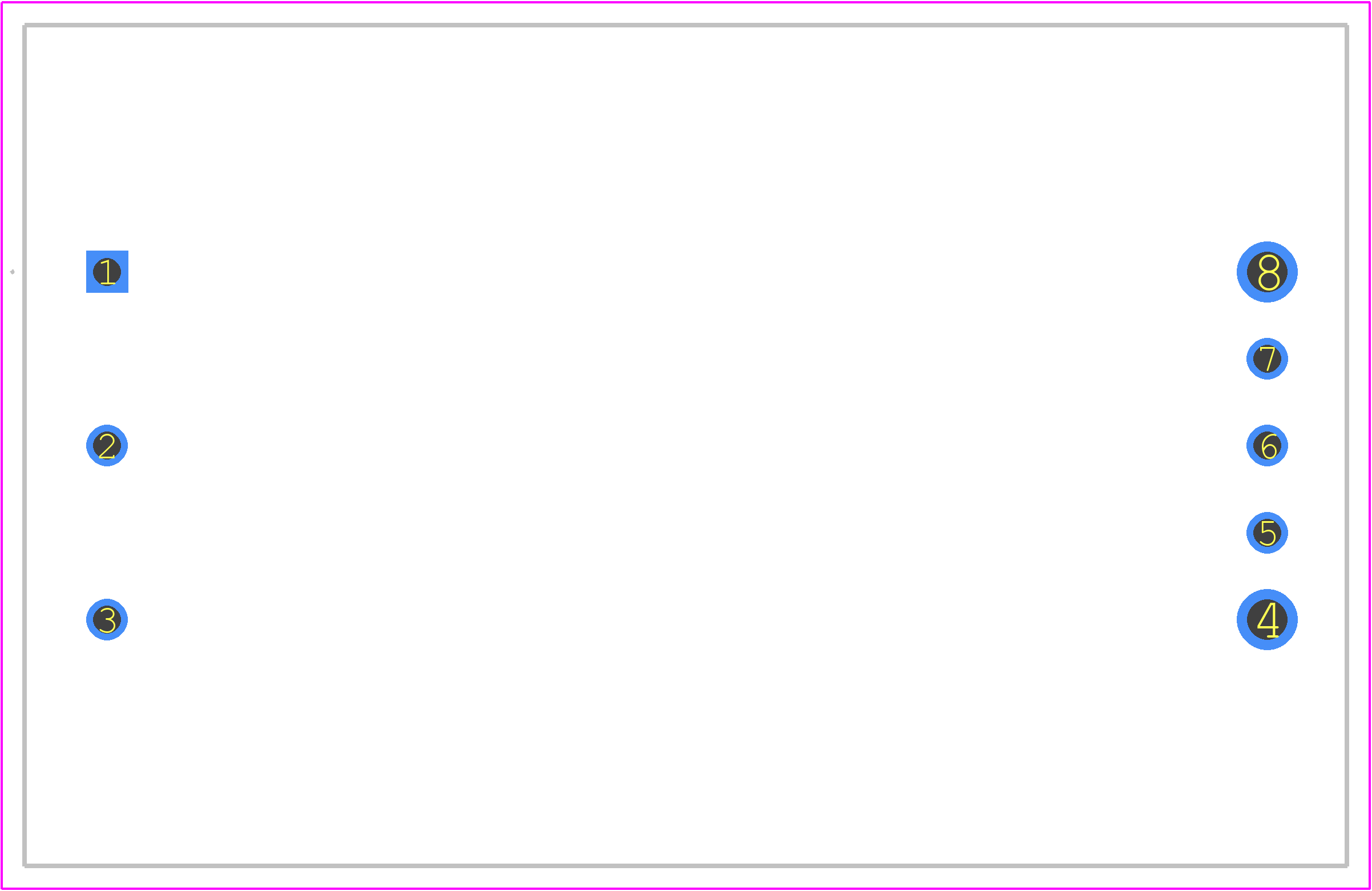

• Package Description:

  QUARTER BRICK PACKAGE-8

• ECCN Code:

  EAR99

• Manufacturer:

  TDK-Lambda Corporation

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CB, CE, UL, VDE

• Efficiency (Main Output):

  92.5%

• Input Voltage-Max:

  75 V

• Input Voltage-Min:

  36 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  R-XDMA-P8

• Length:

  57.9 mm

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  115 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  11 A

• Output Voltage-Max:

  30.8 V

• Output Voltage-Min:

  16.8 V

• Output Voltage-Nom:

  28 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Ripple Voltage (Main Out):

  0.17675 Vrms

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  308 W

• Trim/Adjustable Output:

  YES

• Width:

  36.8 mm
