iQL48025A120V-001-R footprint, schematic symbol and 3D model by TDK Lambda

Symbol

click to zoom

PCB Footprints

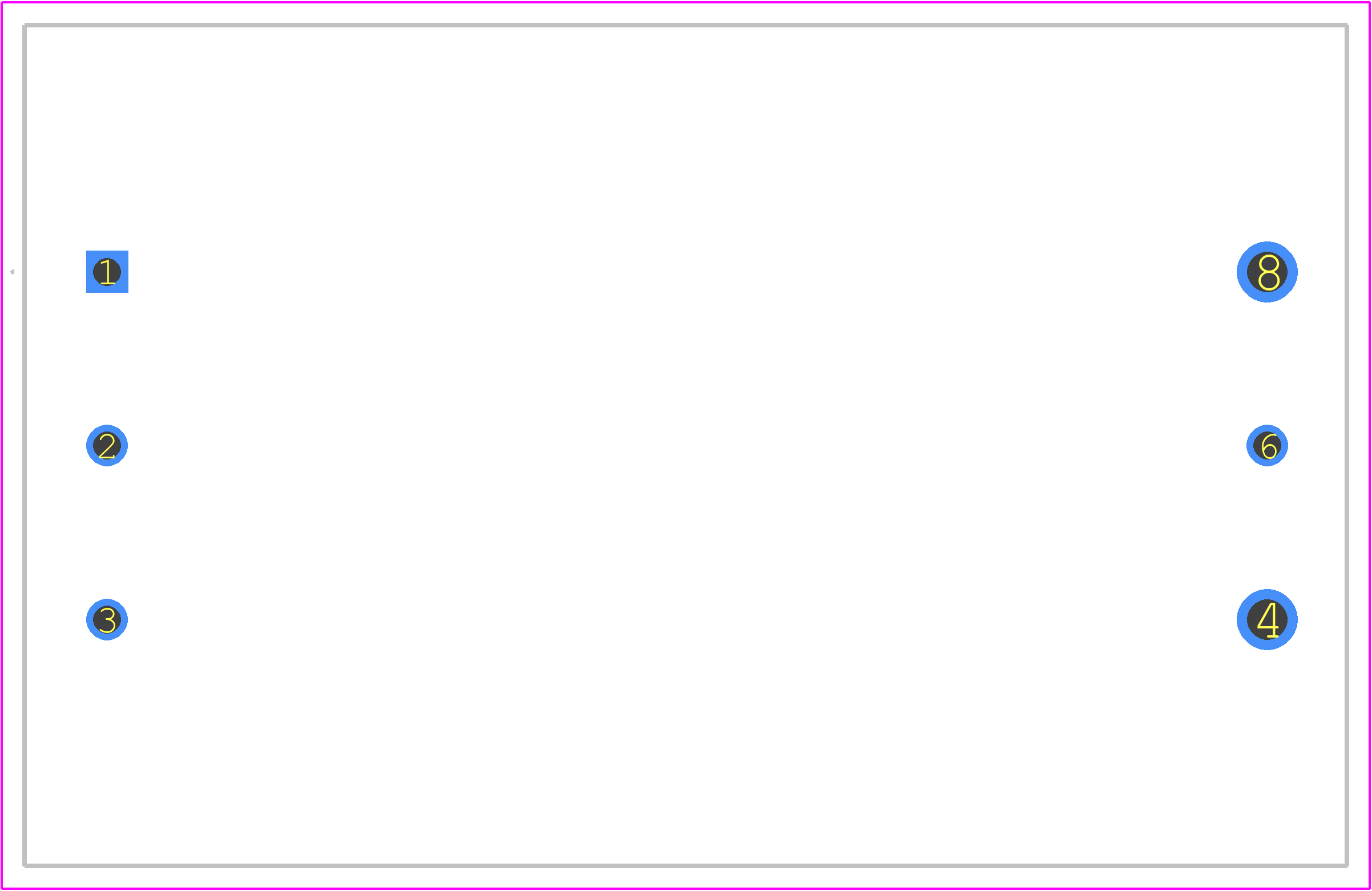

iQL48025A120V-001-R - TDK Lambda PCB footprint - Other - Other - 57.9mm x 36.8mm x13.2m

click to zoom

3D Models

iQL48025A120V-001-R - TDK Lambda - 3D model - Other - 57.9mm x 36.8mm x13.2m

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for iQL48025A120V-001-R
Part Number iQL48025A120V-001-R
Manufacturer TDK Lambda
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - 57.9mm x 36.8mm x13.2m
Released Date Apr 1, 2022
Last Modified Date Aug 1, 2024 9:27 AM UTC
Pinout / Pin List Click Here (Member Only)

iQL48025A120V-001-R Details

Manufacturer Part Number:
IQL48025A120V-001-R
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
PACKAGE-8
ECCN Code:
EAR99
Manufacturer:
TDK-Lambda Corporation
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, CSA, EN, IEC, UL
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
94%
Input Voltage-Max:
75 V
Input Voltage-Min:
36 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XXMA-X8
Line Regulation-Max:
0.0072%
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
118 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
25 A
Output Voltage-Max:
13.2 V
Output Voltage-Min:
9.6 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER LOAD; OVER VOLTAGE; THERMAL
Ripple Voltage (Main Out):
0.04242 Vrms
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
UNSPECIFIED
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
300 W
Trim/Adjustable Output:
YES

iQL48025A120V-001-R Frequently Asked Questions (FAQs)

TDK-Lambda recommends a multi-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) should be used between the module and the heatsink to ensure efficient heat transfer.
Yes, the IQL48025A120V-001-R is designed to meet the requirements of IEC 60068-2-6 for vibration and IEC 60068-2-27 for shock. However, it's recommended to consult with TDK-Lambda's application engineers to ensure the module meets the specific vibration requirements of your application.
The maximum allowable input capacitance for the IQL48025A120V-001-R is 47uF. Exceeding this value may affect the module's stability and performance.
Yes, the IQL48025A120V-001-R can be paralleled to increase the output power. However, it's essential to ensure that the modules are identical and that the output voltage and current are properly synchronized to prevent uneven current sharing.
The MTBF of the IQL48025A120V-001-R is approximately 2.5 million hours at 40°C ambient temperature, calculated according to MIL-HDBK-217F.
