TDK-Lambda recommends a multi-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, a thermal interface material (TIM) should be used between the module and the heatsink to ensure efficient heat transfer.
To ensure EMC, TDK-Lambda recommends following proper PCB layout and design guidelines, using a metal enclosure, and implementing EMI filtering and shielding. Additionally, the module should be installed in a way that minimizes radiation and conduction of electromagnetic interference.
The derating curve for IQL48025A120V-009-R is typically provided in the datasheet or can be obtained from TDK-Lambda's application notes. The derating curve shows the reduction in output power as a function of temperature, altitude, and input voltage. Engineers should consult the derating curve to ensure the module operates within its specified ratings.
Yes, the IQL48025A120V-009-R can be used in redundant or parallel configurations, but it requires careful design and implementation to ensure proper operation and fault tolerance. Engineers should consult TDK-Lambda's application notes and guidelines for parallel and redundant operation.
TDK-Lambda recommends using input and output filtering components, such as capacitors and inductors, to minimize electromagnetic interference and ensure stable operation. The recommended components and their values can be found in the datasheet or application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
iQL48025A120V-009-R Overview

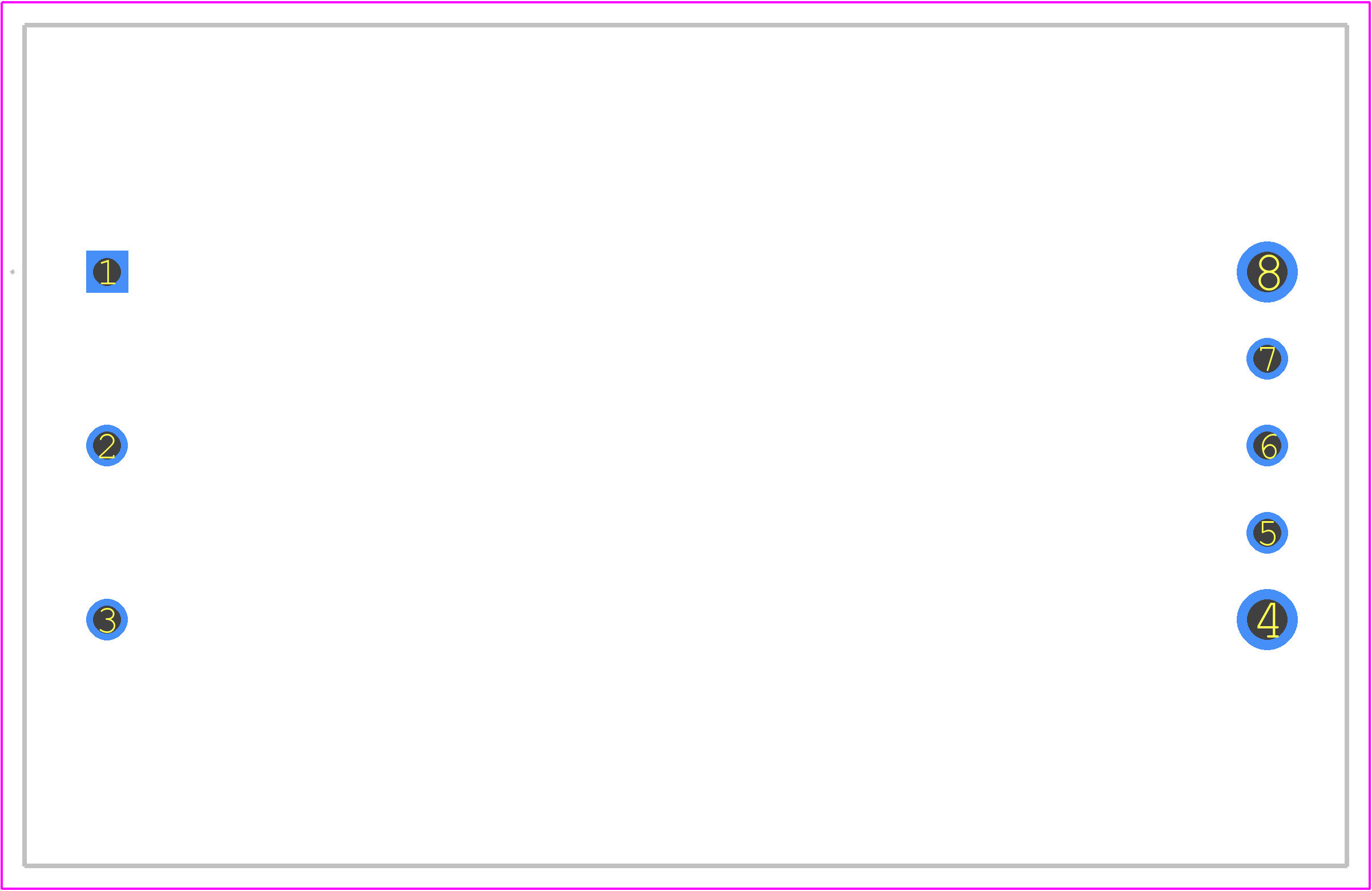

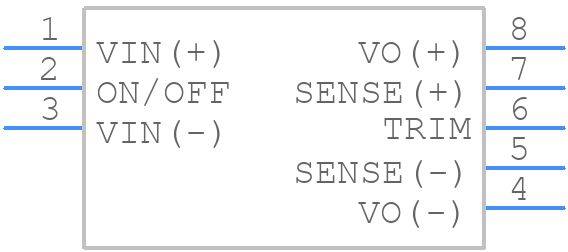

Use the download button to access the iQL48025A120V-009-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iQL48,
or try a keyword search, such as Power Supply Modules
