TDK-Lambda recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a metal plate to ensure efficient heat dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
The IQL48045A050V-009-R has built-in input voltage transient protection up to 300V for 100ms, and it can withstand spikes up to 400V for 10ms. However, it's recommended to add external protection devices such as TVS diodes or varistors for more severe transient conditions.
The derating curve is not explicitly provided in the datasheet, but TDK-Lambda recommends derating the output power by 2.5% per degree Celsius above 40°C to ensure reliable operation. For example, at 50°C, the output power should be derated by 25%.
Yes, the IQL48045A050V-009-R can be used in a redundant or parallel configuration, but it's essential to ensure that the units are synchronized and properly connected to avoid any potential issues. TDK-Lambda recommends consulting their application notes and technical support for guidance on implementing redundant or parallel configurations.
The MTBF rating for the IQL48045A050V-009-R is not explicitly provided in the datasheet, but TDK-Lambda estimates it to be around 1.5 million hours at 40°C, based on MIL-HDBK-217F calculations. However, this value may vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
iQL48045A050V-009-R Overview

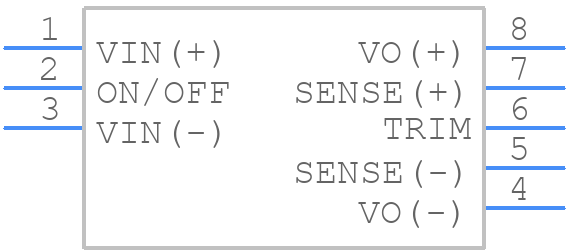

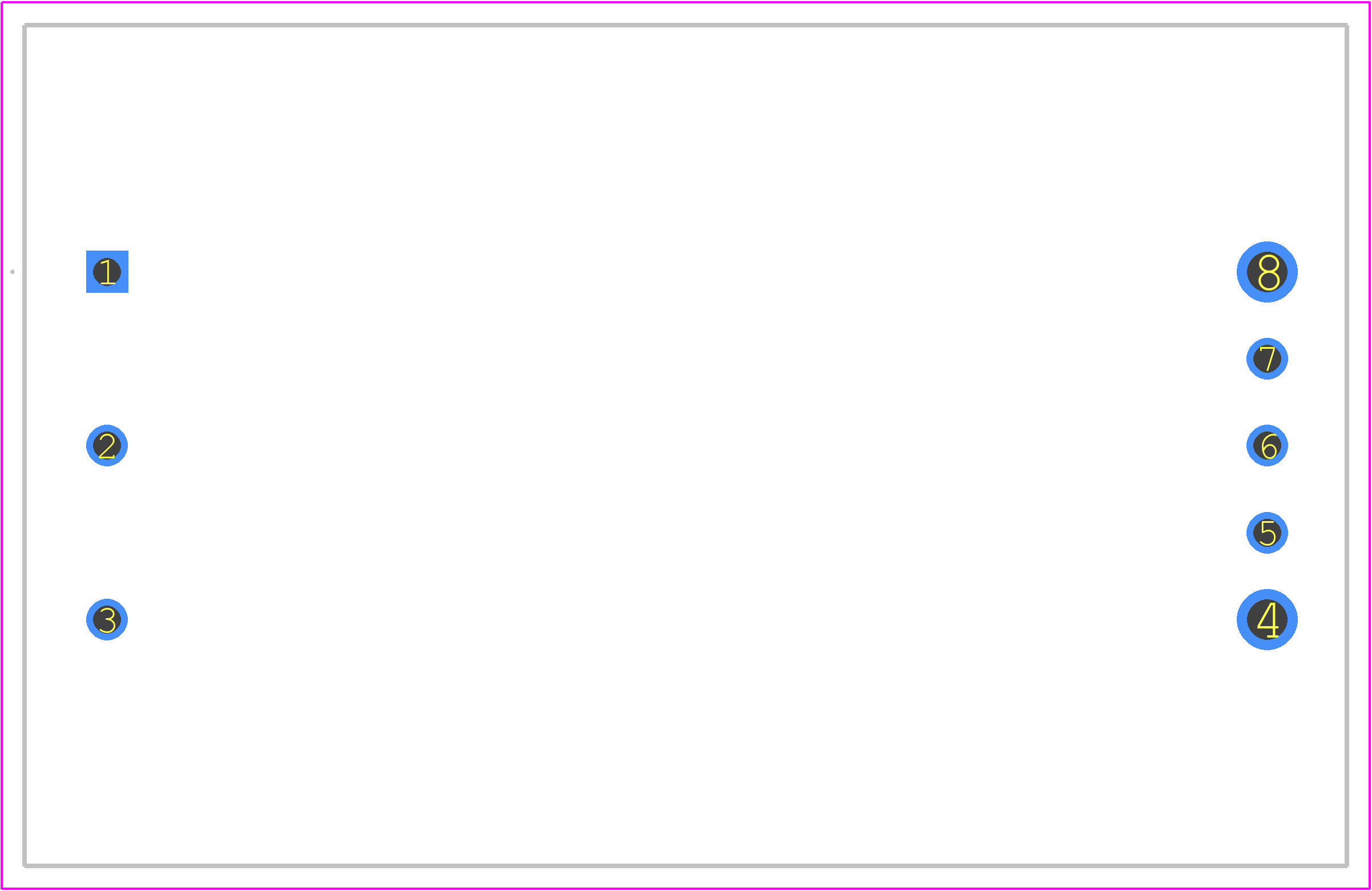

Use the download button to access the iQL48045A050V-009-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like iQL48,
or try a keyword search, such as Power Supply Modules
