iQL48060A033V-009-R footprint, schematic symbol and 3D model by TDK Lambda

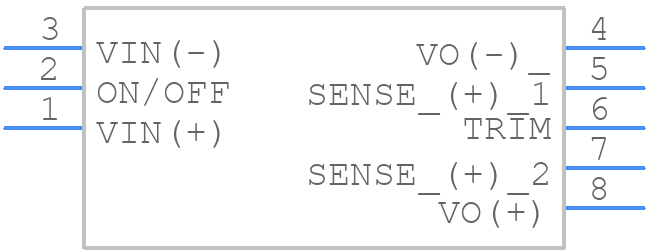

Symbol

click to zoom

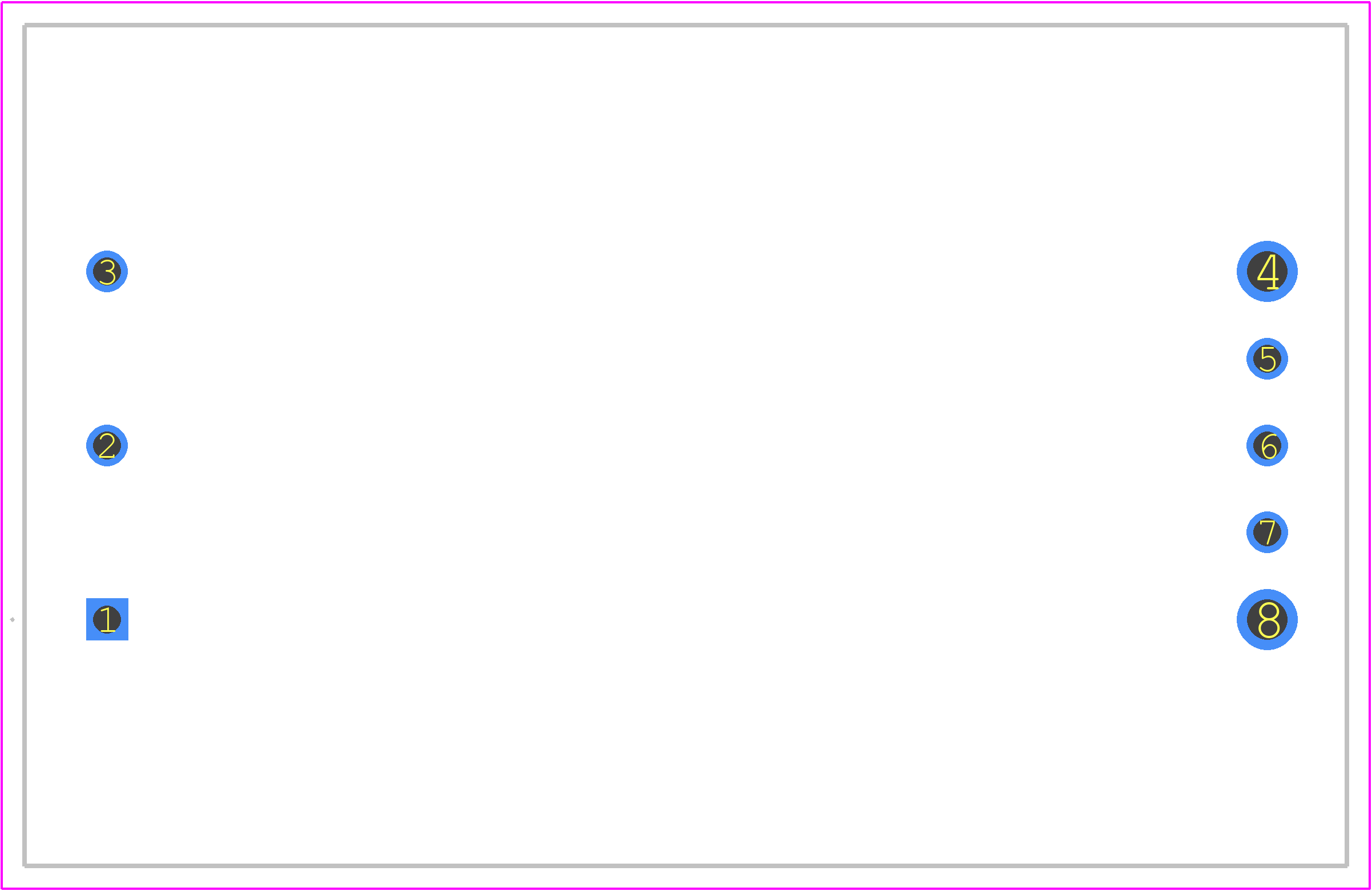

PCB Footprints

iQL48060A033V-009-R - TDK Lambda PCB footprint - Other - Other - iQL48060A033V-009-R

click to zoom

3D Models

iQL48060A033V-009-R - TDK Lambda - 3D model - Other - iQL48060A033V-009-R

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for iQL48060A033V-009-R
Part Number iQL48060A033V-009-R
Manufacturer TDK Lambda
Pin Count 8
Part Category Power Supply
Package Category Other
Footprint Name Other - iQL48060A033V-009-R
Released Date Feb 22, 2024
Last Modified Date Aug 1, 2024 9:27 AM UTC
Pinout / Pin List Click Here (Member Only)

iQL48060A033V-009-R Details

Manufacturer Part Number:
IQL48060A033V-009-R
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
PACKAGE-8
ECCN Code:
EAR99
Manufacturer:
TDK-Lambda Corporation
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, CSA, EN, IEC, UL
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
91%
Input Voltage-Max:
75 V
Input Voltage-Min:
36 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XXMA-X8
Line Regulation-Max:
0.00021%
Load Regulation-Max:
0.45%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
60 A
Output Voltage-Max:
3.63 V
Output Voltage-Min:
2.64 V
Output Voltage-Nom:
3.3 V
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER LOAD; OVER VOLTAGE; THERMAL
Ripple Voltage (Main Out):
0.03535 Vrms
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
AUTOMOTIVE
Terminal Form:
UNSPECIFIED
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
198 W
Trim/Adjustable Output:
YES

iQL48060A033V-009-R Frequently Asked Questions (FAQs)

TDK-Lambda recommends a PCB layout with a solid copper ground plane and thermal vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
Yes, the IQL48060A033V-009-R is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which ensures reliable operation in applications with vibration levels up to 10G.
To ensure EMC, TDK-Lambda recommends following proper PCB design and layout guidelines, using a metal enclosure, and implementing adequate filtering and shielding. Additionally, the module meets the CISPR 22 and FCC Part 15 Class B EMC standards.
The maximum allowable input capacitance for the IQL48060A033V-009-R is 47μF. Exceeding this value may affect the module's stability and performance.
Yes, the IQL48060A033V-009-R can be used in a redundant configuration to achieve high reliability and availability. TDK-Lambda recommends following proper design and implementation guidelines to ensure seamless redundancy operation.
