A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from Infineon provides additional recommendations.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device temperature within the recommended range.
The high-frequency switching of the IR1155STRPBF can generate electromagnetic interference (EMI) and radio-frequency interference (RFI). To mitigate this, use proper PCB layout techniques, such as separating high-frequency and low-frequency circuits, and consider using EMI filters or shielding to reduce emissions.
Optimizing the device's performance for specific applications requires careful consideration of the application's requirements, such as switching frequency, voltage, and current. Consult Infineon's application notes and design guides for specific guidance on optimizing the IR1155STRPBF for motor control, power conversion, and other applications.
The internal voltage regulator of the IR1155STRPBF can affect system power consumption. To minimize power consumption, consider using an external voltage regulator or optimizing the internal regulator's settings for the specific application. Additionally, consider using power-saving modes, such as sleep or standby, to reduce power consumption when the device is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IR1155STRPBF Overview

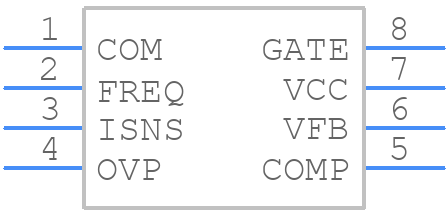

Use the download button to access the IR1155STRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR115,
or try a keyword search, such as Switching Regulator or Controllers
