A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Implement proper thermal management, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
Critical parameters for EMI and EMC compliance include layout considerations, such as keeping sensitive traces away from noisy signals, using shielding, and implementing proper filtering and decoupling. Additionally, ensure that the device is operated within the recommended frequency range and that the system meets the relevant EMI and EMC standards.
To troubleshoot overcurrent protection issues, check the current sense resistor value, ensure proper PCB layout, and verify that the device is operated within the recommended current range. Also, check for any short circuits or faulty components in the system.
Store the devices in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the devices by the body, avoiding touching the pins or leads. Use anti-static wrist straps or mats when handling the devices to prevent electrostatic discharge damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IR2010PBF Overview

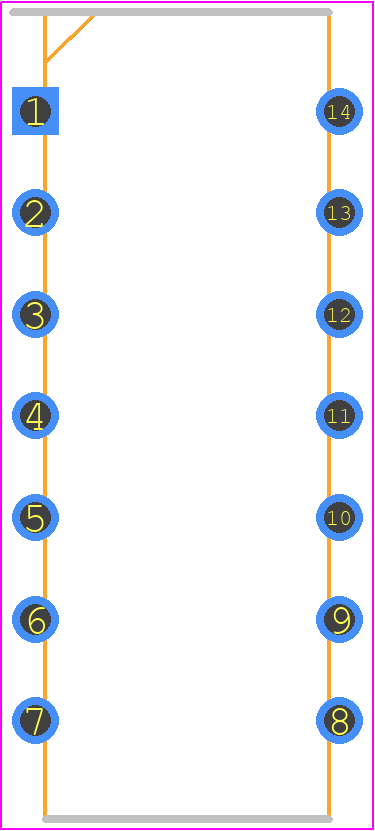

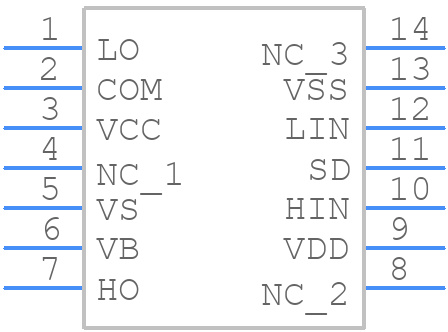

Use the download button to access the IR2010PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR201,
or try a keyword search, such as MOSFET Drivers
