IR2110PBF footprint, schematic symbol and 3D model by Infineon

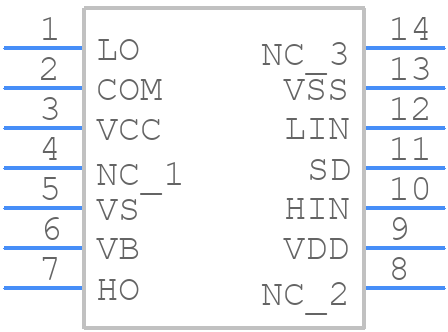

Symbol

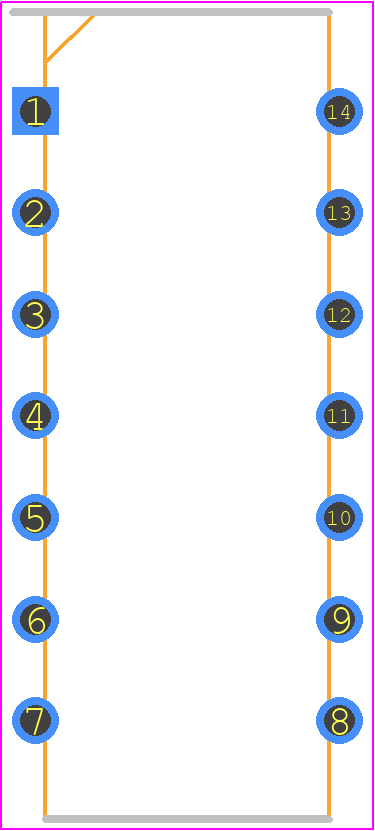

PCB Footprints

3D Models

IR2110PBF Details

The maximum voltage rating of the IR2110PBF is 500V, which is the maximum voltage that can be applied between the VCC and COM pins.
To ensure proper thermal management, it is recommended to provide a heat sink or a thermal pad to dissipate heat generated by the device. The thermal resistance of the package is 2.5°C/W, and the maximum junction temperature is 150°C.
The SD (Shutdown) pin is an active-low input that allows the user to shut down the device when pulled low. When the SD pin is pulled low, the device enters a low-power state, reducing power consumption.
The deadtime of the IR2110PBF can be configured using external resistors and capacitors connected to the DT pin. The deadtime is programmable from 100ns to 10μs, allowing for flexibility in designing the switching frequency and deadtime of the application.
The maximum switching frequency of the IR2110PBF is 500kHz, making it suitable for high-frequency switching applications such as DC-DC converters and motor control systems.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the IR2110PBF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IR211, or try a keyword search, such as MOSFET Drivers
