IR2113 - Infineon

Description: Single MOSFET DRIVER, 14 Pin, Ceramic, DIP

Download IR2113 Model

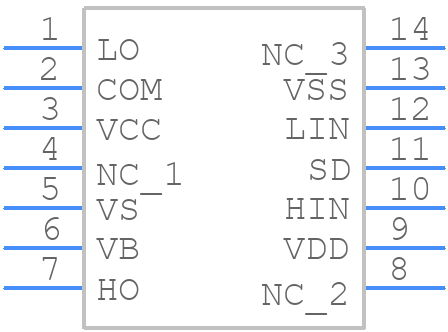

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

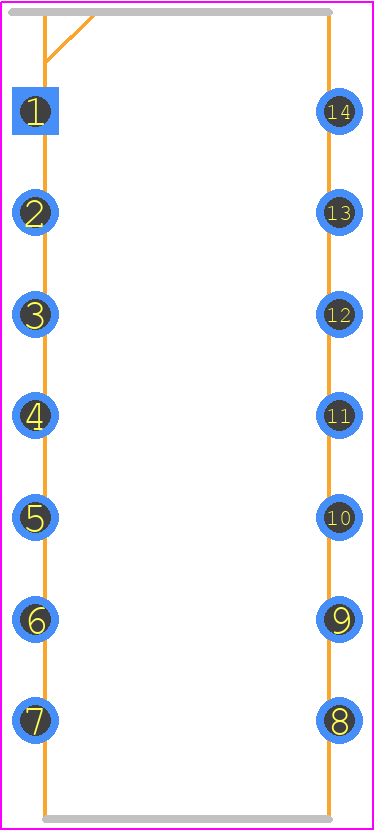

IR2113 - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - IR2113
click to zoom
3D Models
IR2113 - Infineon  - 3D model - Dual-In-Line Packages - IR2113
click to zoom

IR2113 Details

  • Manufacturer Part Number:

    IR2113

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.305 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.125 µs

  • Turn-on Time:

    0.15 µs

  • Width:

    7.62 mm

IR2113 Frequently Asked Questions (FAQs)

  • The maximum voltage rating of the IR2113 is 500V, but it can be used in applications up to 600V with proper design and layout considerations.
  • The bootstrap capacitor should be selected based on the switching frequency, output current, and voltage rating. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a voltage rating of at least 2x the maximum voltage of the high-side driver.
  • The VCC pin is used to power the internal logic and low-side driver of the IR2113. It should be connected to a stable voltage source between 4.5V to 15V, and decoupled with a capacitor to ensure proper operation.
  • Shoot-through current can be prevented by ensuring that the dead-time between the high-side and low-side drivers is sufficient, typically around 100ns to 200ns. Additionally, the gate resistors should be selected to ensure that the gate voltage rises and falls slowly enough to prevent simultaneous conduction.
  • The maximum switching frequency of the IR2113 is typically around 500kHz, but it can be used at higher frequencies with proper design and layout considerations. However, increasing the switching frequency can lead to increased power losses and electromagnetic interference (EMI).
