IR2113PBF - Infineon

Description: Infineon IR2113PBF Dual MOSFET Power Driver, 2.5A High and Low Side, 10 → 20 V 14-Pin, PDIP

Download IR2113PBF Model

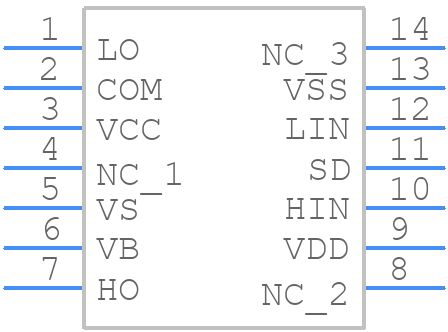

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

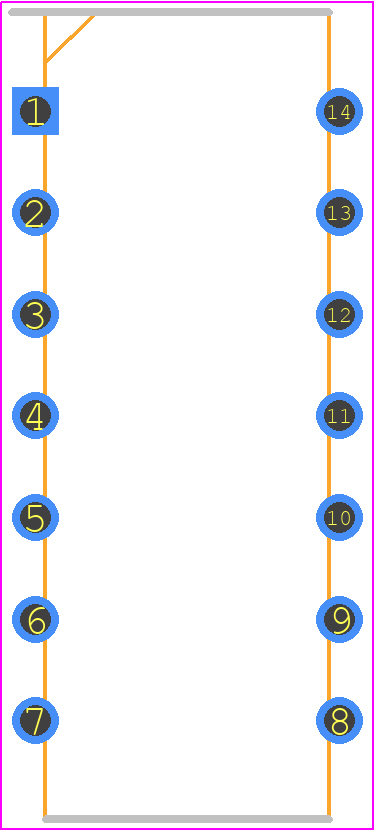

IR2113PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-Lead PDIP_1
click to zoom
3D Models
IR2113PBF - Infineon  - 3D model - Dual-In-Line Packages - 14-Lead PDIP_1
click to zoom

IR2113PBF Details

  • Manufacturer Part Number:

    IR2113PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.305 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    520 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.125 µs

  • Turn-on Time:

    0.15 µs

  • Width:

    7.62 mm

IR2113PBF Frequently Asked Questions (FAQs)

  • The maximum voltage rating of the IR2113PBF is 500V, which is the maximum voltage that can be applied between the VCC and COM pins.
  • To ensure proper thermal management, it is recommended to provide a heat sink or a thermal pad to dissipate heat generated by the device. The thermal resistance of the package is 2.5°C/W, and the maximum junction temperature is 150°C.
  • The bootstrap capacitor is used to generate the high-side gate drive voltage. It is charged through the VCC pin and the bootstrap diode, and then used to drive the high-side FET.
  • The bootstrap capacitor value depends on the specific application and the required gate drive voltage. A general guideline is to use a capacitor with a value between 10nF to 100nF, with a voltage rating of at least 25V.
  • The maximum frequency of operation for the IR2113PBF is 500kHz, although it can operate at higher frequencies with reduced performance.
