IR2121PBF - Infineon

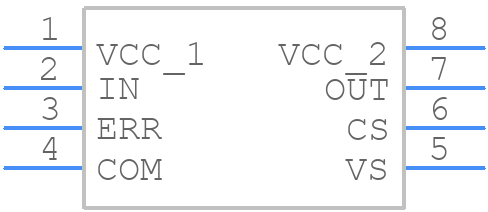

IR2121PBF Details

• Manufacturer Part Number:

  IR2121PBF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PLASTIC, DIP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  5.5

• High Side Driver:

  NO

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  BUFFER OR INVERTER BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e3

• Length:

  9.88 mm

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  TOTEM-POLE

• Output Peak Current Limit-Nom:

  3.3 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.33 mm

• Supply Voltage-Max:

  23 V

• Supply Voltage-Min:

  7 V

• Supply Voltage-Nom:

  15 V

• Supply Voltage1-Max:

  23 V

• Supply Voltage1-Min:

  7 V

• Supply Voltage1-Nom:

  15 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.25 µs

• Turn-on Time:

  0.2 µs

• Width:

  7.62 mm
