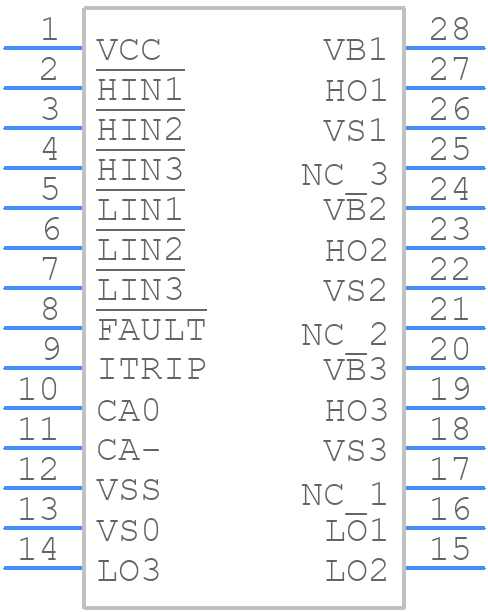

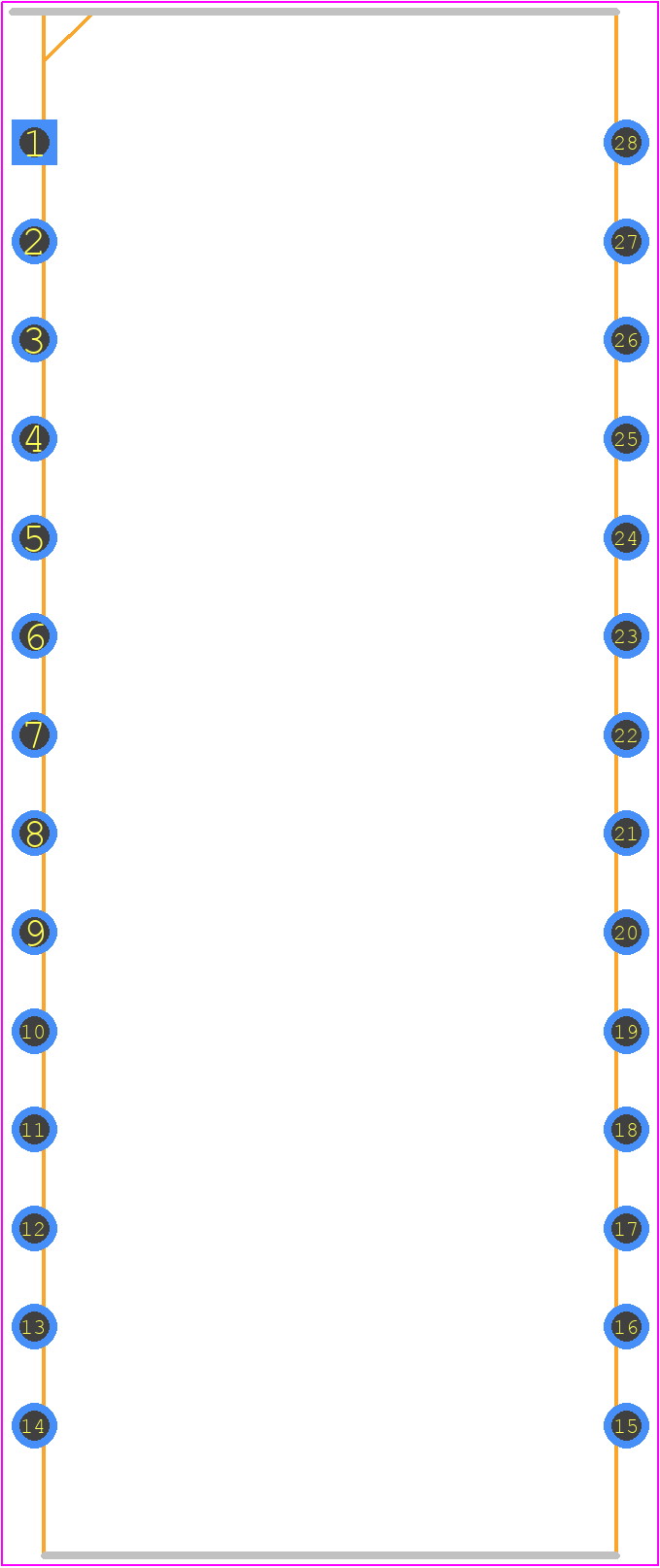

IR2130 - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-Lead PDIP (wide body)
click to zoom
3D Models
IR2130 - Infineon  - 3D model - Dual-In-Line Packages - 28-Lead PDIP (wide body)
click to zoom

IR2130 Details

  • Manufacturer Part Number:

    IR2130

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    37.405 mm

  • Number of Functions:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.35 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.55 µs

  • Turn-on Time:

    0.85 µs

  • Width:

    15.24 mm

IR2130 Frequently Asked Questions (FAQs)

  • The maximum voltage rating of the bootstrap capacitor should be at least 2x the maximum voltage of the VCC supply, typically 15V to 20V.
  • Ensure the bootstrap capacitor is properly charged by providing a low-impedance path from the VCC supply to the bootstrap capacitor, and by using a suitable resistor value for the bootstrap resistor (RBOOT).
  • The recommended value for the bootstrap resistor (RBOOT) is typically in the range of 1kΩ to 10kΩ, depending on the specific application and VCC supply voltage.
  • The dead time between the high-side and low-side switches can be handled by using the internal dead time generator or by using an external dead time generator circuit. The recommended dead time is typically in the range of 100ns to 500ns.
  • The maximum switching frequency supported by the IR2130 is typically up to 500kHz, but it depends on the specific application, layout, and component selection.
