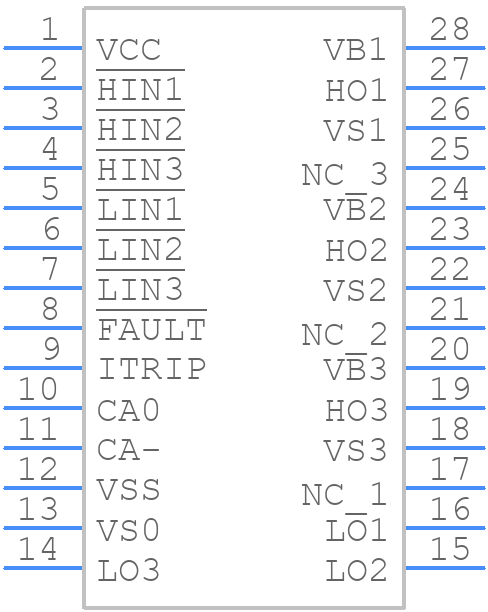

IR2130STRPBF - Infineon

IR2130STRPBF Details

• Manufacturer Part Number:

  IR2130STRPBF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOIC-28

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  8

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HALF BRIDGE BASED IGBT/MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G28

• Length:

  17.9 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  3

• Number of Terminals:

  28

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  0.5 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max:

  20 V

• Supply Voltage-Min:

  10 V

• Supply Voltage-Nom:

  15 V

• Supply Voltage1-Max:

  620 V

• Supply Voltage1-Min:

  5 V

• Supply Voltage1-Nom:

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.55 µs

• Turn-on Time:

  0.85 µs

• Width:

  7.5 mm
