IR2133PBF - Infineon

Description: Infineon IR2133PBF Hex Three Phase MOSFET Power Driver 0.5A, 10 → 20 V, Non-Inverting, PDIP 28-Pin

Download IR2133PBF Model

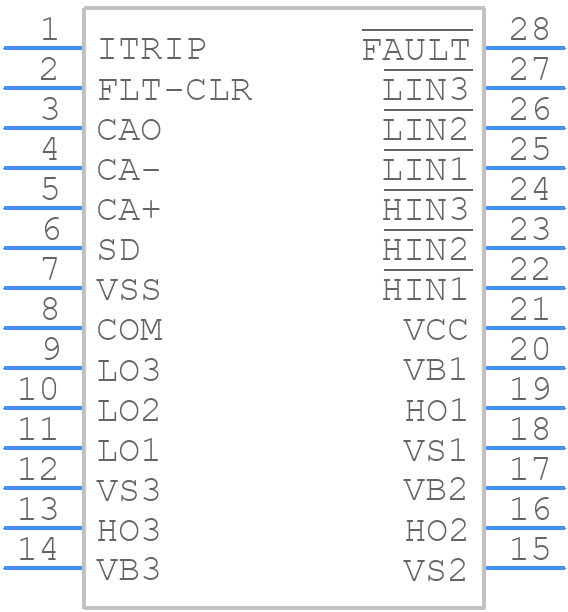

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

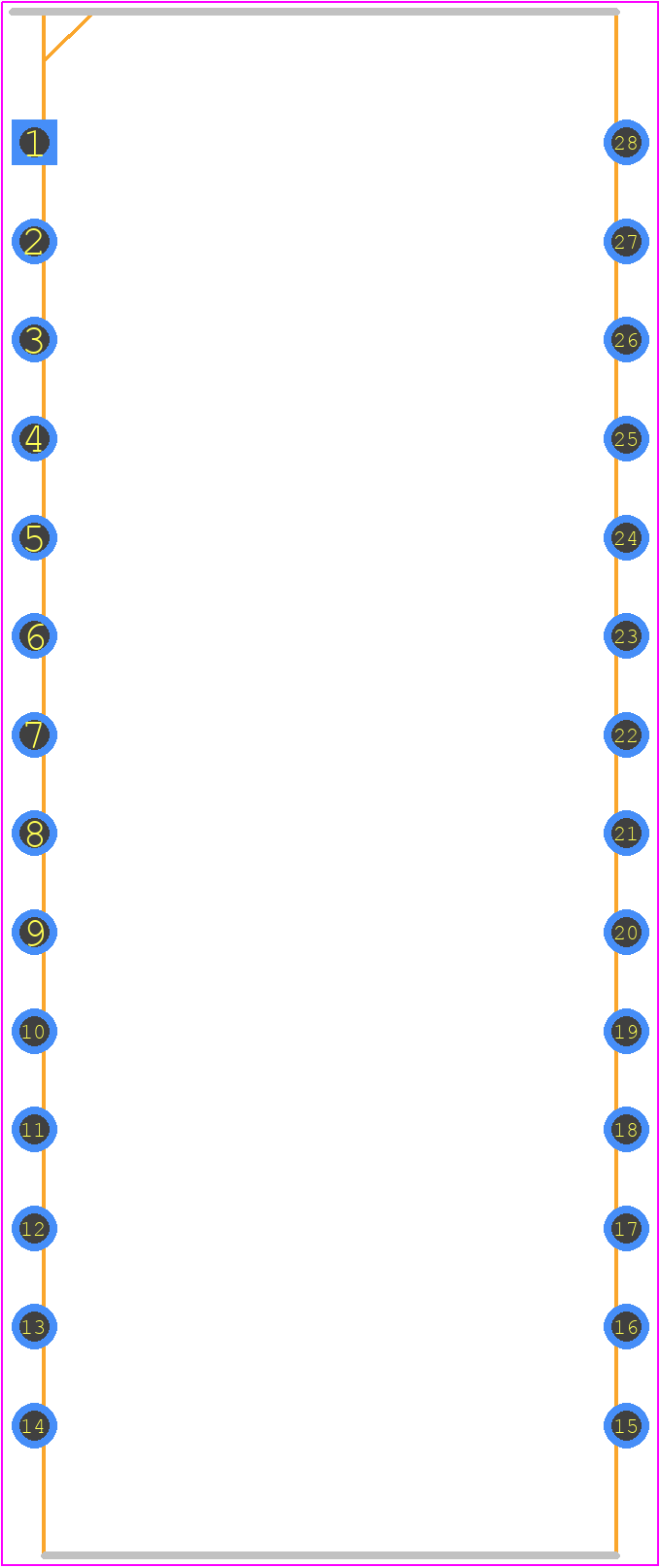

IR2133PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-LEAD PDIP
click to zoom
3D Models
IR2133PBF - Infineon  - 3D model - Dual-In-Line Packages - 28-LEAD PDIP
click to zoom

IR2133PBF Details

  • Manufacturer Part Number:

    IR2133PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    FLOATING LOAD DRIVER; UNDER VOLTAGE LOCKOUT CIRCUIT

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T28

  • Length:

    37.405 mm

  • Number of Functions:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.35 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    600 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.95 µs

  • Turn-on Time:

    1 µs

  • Width:

    15.24 mm

IR2133PBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the IR2133PBF is 600 kHz, but it can be adjusted up to 1 MHz with an external oscillator.
  • Proper thermal management can be achieved by providing a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device. Additionally, the PCB layout should be designed to minimize thermal impedance.
  • The recommended dead-time setting for the IR2133PBF is between 100 ns to 500 ns, depending on the specific application and switching frequency. A longer dead-time can help reduce EMI, but may also increase power losses.
  • Yes, the IR2133PBF can be used in a half-bridge configuration, but it requires an external bootstrap diode and capacitor to ensure proper operation. Additionally, the half-bridge configuration may require adjustments to the dead-time and switching frequency.
  • The IR2133PBF has built-in overvoltage protection (OVP) and undervoltage protection (UVP) features. However, additional external protection circuits may be required depending on the specific application and voltage requirements.
