IR2135JTRPBF - Infineon

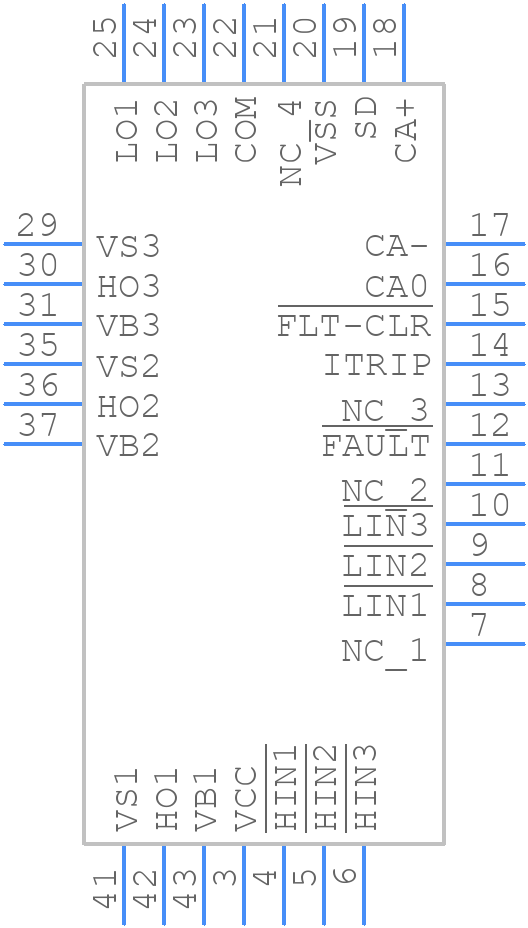

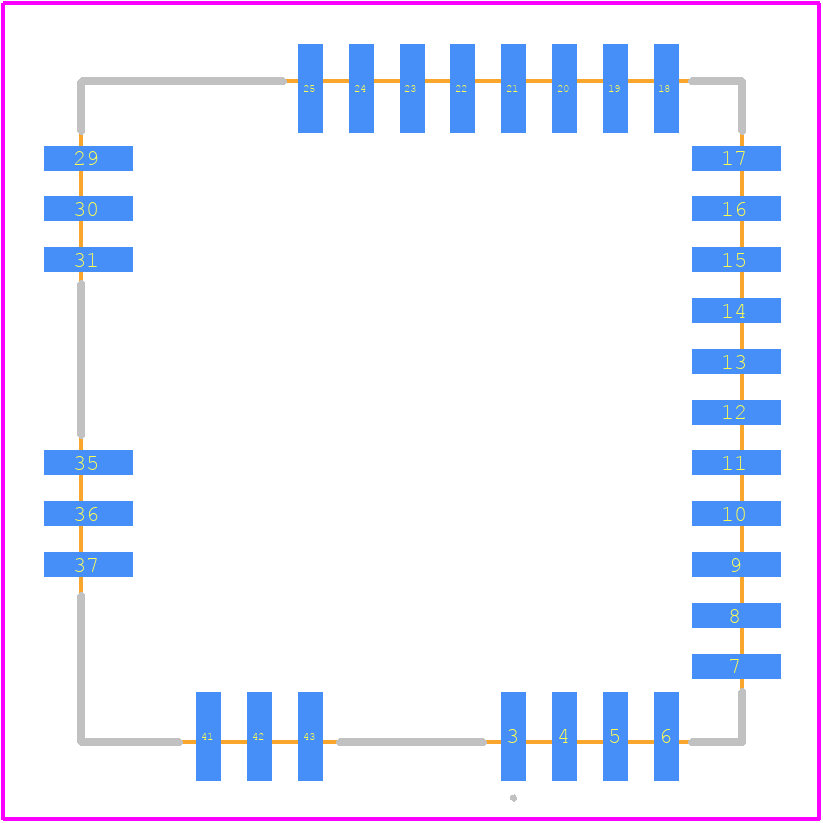

IR2135JTRPBF Details

• Manufacturer Part Number:

  IR2135JTRPBF

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PLASTIC, MS-018AC, LCC-44/32

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  6.81

• Additional Feature:

  FLOATING LOAD DRIVER; UNDER VOLTAGE LOCKOUT CIRCUIT

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PQCC-J32

• Length:

  16.5862 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  3

• Number of Terminals:

  32

• Operating Temperature-Max:

  125 °C

• Output Characteristics:

  STANDARD

• Output Peak Current Limit-Nom:

  0.5 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Seated Height-Max:

  4.57 mm

• Supply Voltage-Max:

  20 V

• Supply Voltage-Min:

  10 V

• Supply Voltage-Nom:

  15 V

• Supply Voltage1-Max:

  600 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Turn-off Time:

  0.95 µs

• Turn-on Time:

  1 µs

• Width:

  16.5862 mm
