IR2136 - Infineon

Description: IC, Driver, Interface, MOSFET IGBT, IR2136

Download IR2136 Model

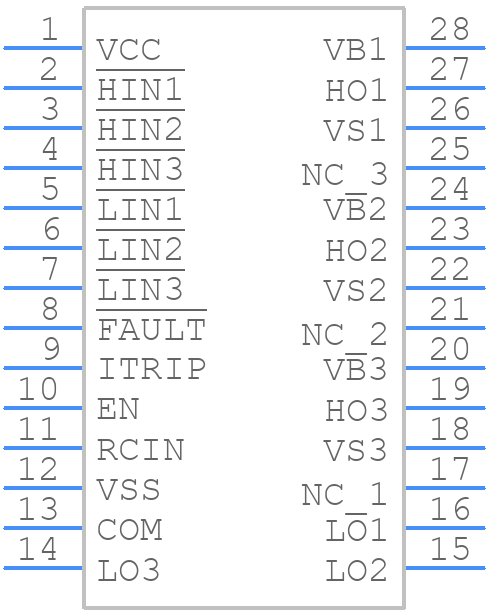

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

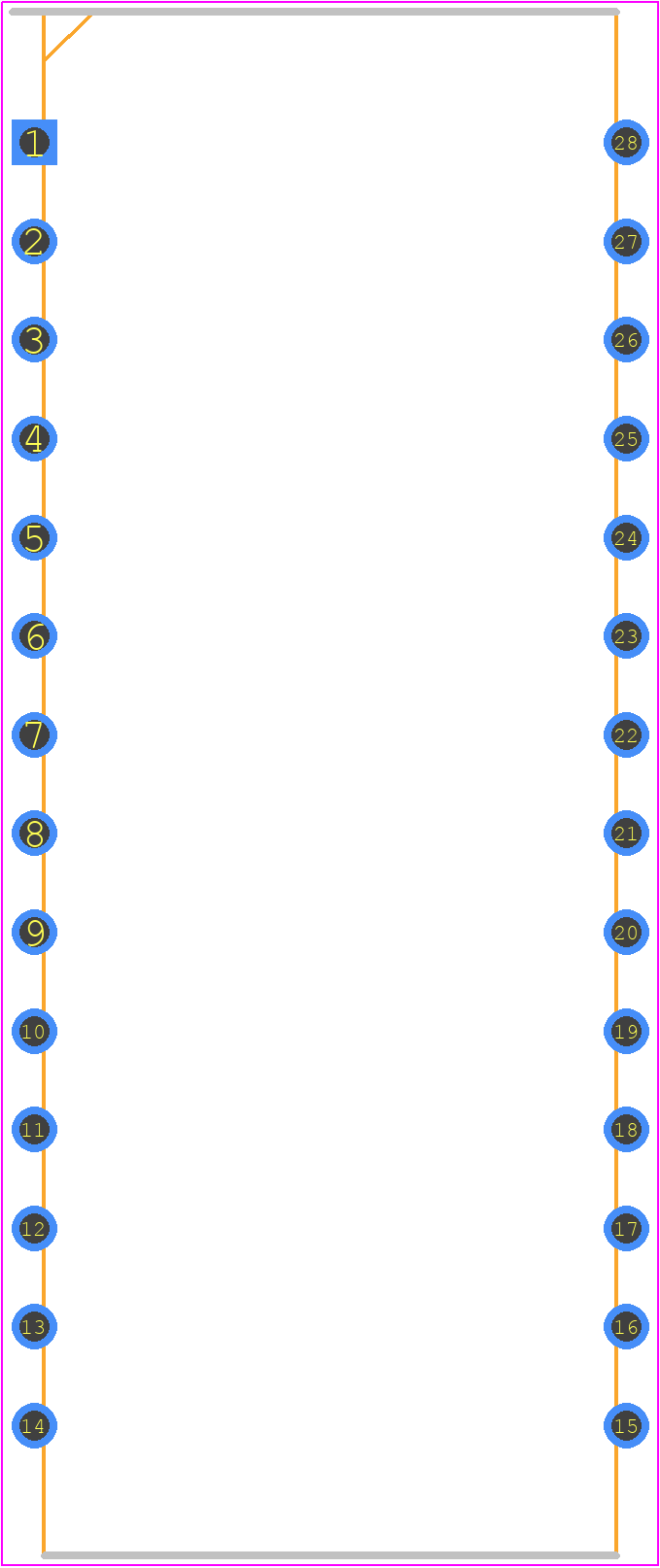

IR2136 - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 28-LEAD PDIP
click to zoom
3D Models
IR2136 - Infineon  - 3D model - Dual-In-Line Packages - 28-LEAD PDIP
click to zoom

IR2136 Details

  • Manufacturer Part Number:

    IR2136

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e0

  • Length:

    37.405 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.35 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    6.35 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.55 µs

  • Turn-on Time:

    0.55 µs

  • Width:

    15.24 mm

IR2136 Frequently Asked Questions (FAQs)

  • The maximum voltage rating of the bootstrap capacitor is typically 25V, but it's recommended to use a capacitor with a voltage rating of 30V or higher to ensure reliable operation.
  • The minimum bootstrap capacitor value can be calculated using the formula: CBOOT ≥ (VCC × IPEAK) / (fSW × ΔVBOOT), where VCC is the supply voltage, IPEAK is the peak current, fSW is the switching frequency, and ΔVBOOT is the allowed voltage droop.
  • The recommended dead-time between the high-side and low-side switches is typically around 100-200 ns to ensure proper switching and prevent shoot-through currents.
  • The gate drive voltage can be adjusted by changing the value of the VCC supply voltage or by using an external voltage regulator to optimize switching performance. A higher gate drive voltage can improve switching speed, but may also increase power consumption.
  • The maximum allowable junction temperature for the IR2136 is 150°C. Operating the device above this temperature can reduce its reliability and lifespan.
