IR21363JPBF - Infineon

Description: 600 V three-phase gate driver IC with OCP, Enable, and Fault 44-Lead PLCC w/o 12 Leads.

Download IR21363JPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

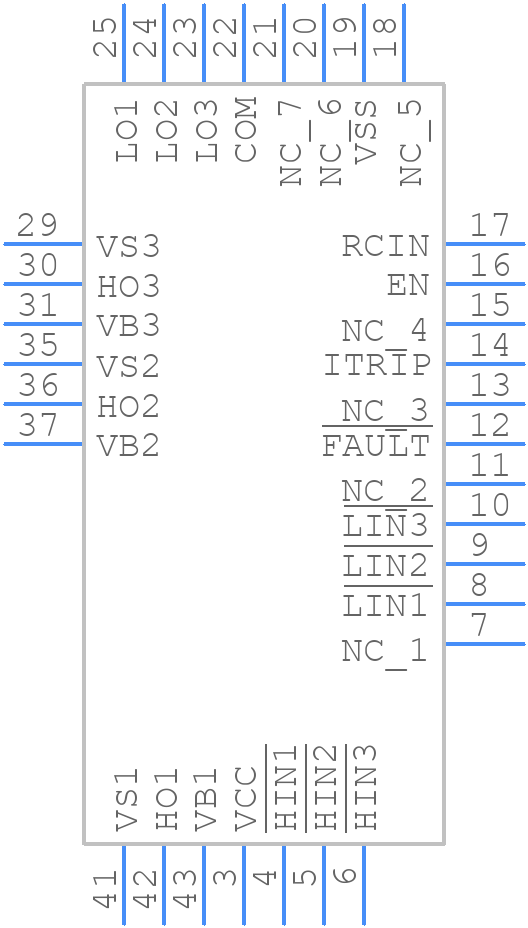

Symbol
IR21363JPBF - Infineon - PCB symbol
click to zoom

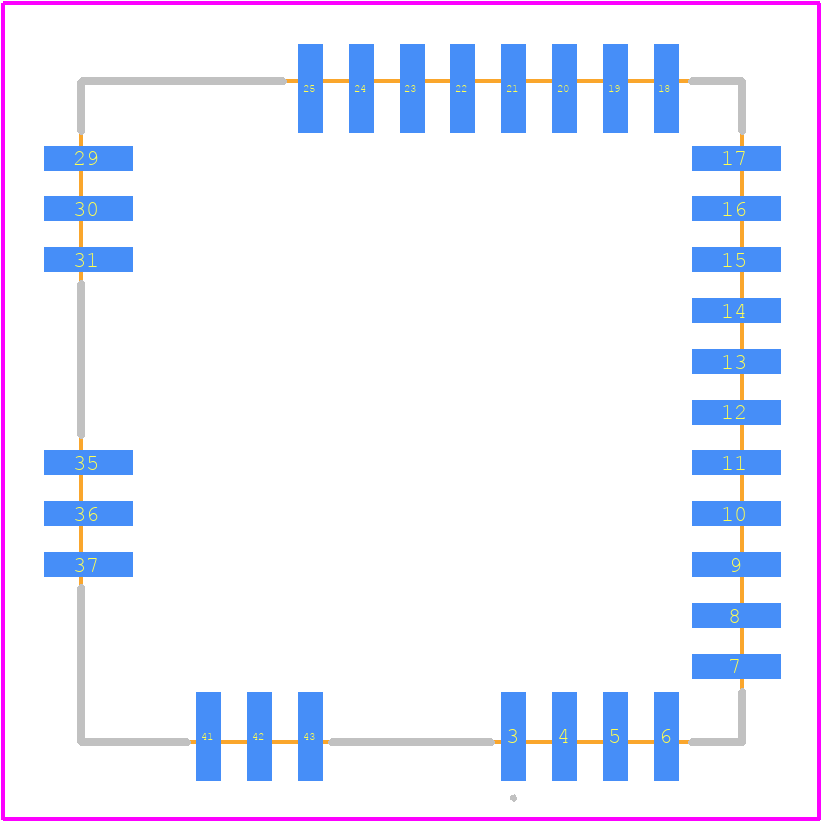

PCB Footprints
IR21363JPBF - Infineon PCB footprint - Other - Other - IR21363JPBF
click to zoom
3D Models
IR21363JPBF - Infineon - 3D model - Other - IR21363JPBF
click to zoom

IR21363JPBF Details

  • Manufacturer Part Number:

    IR21363JPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LCC-44/32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    S-PQCC-J32

  • JESD-609 Code:

    e3

  • Length:

    16.585 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.35 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC44,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    12 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.55 µs

  • Turn-on Time:

    0.55 µs

  • Width:

    16.585 mm

IR21363JPBF Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) of the IR21363JPBF is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure the device's lifespan.
  • To ensure the bootstrap capacitor is properly charged, make sure to provide a sufficient voltage supply to the VCC pin, and ensure the bootstrap capacitor is properly sized and placed close to the IC. Also, ensure the high-side driver is not switching too frequently, as this can prevent the bootstrap capacitor from fully charging.
  • The recommended dead time between the high-side and low-side switches depends on the specific application and the switching frequency. As a general rule, a dead time of 100-200 ns is recommended to prevent shoot-through currents and ensure reliable operation.
  • To protect the IR21363JPBF from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the input voltage (VIN) is within the recommended range of 10-20V. Additionally, consider using overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • The maximum switching frequency of the IR21363JPBF depends on the specific application and the device's configuration. However, the device is typically rated for switching frequencies up to 500 kHz. It's recommended to consult the datasheet and application notes for specific guidance on switching frequency limitations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IR21363JPBF Overview

Use the download button to access the IR21363JPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR213, or try a keyword search, such as MOSFET Drivers
