FLOATING LOAD DRIVER; UNDER VOLTAGE LOCKOUT CIRCUIT
High Side Driver:
YES
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
HALF BRIDGE BASED MOSFET DRIVER
JESD-30 Code:
S-PQCC-J32
Length:
16.585 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
STANDARD
Output Peak Current Limit-Nom:
0.35 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Seated Height-Max:
4.57 mm
Supply Voltage-Max:
20 V
Supply Voltage-Min:
12 V
Supply Voltage-Nom:
15 V
Supply Voltage1-Max:
620 V
Supply Voltage1-Min:
7 V
Supply Voltage1-Nom:
15 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Turn-off Time:
0.55 µs
Turn-on Time:
0.55 µs
Width:
16.585 mm
IR21363JTRPBF Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal performance can be found in the application note AN-978, which provides guidelines for PCB design, component placement, and thermal management.
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines provided in the datasheet, including proper heat sinking, thermal interface material selection, and derating the device's power handling capability according to the temperature rating.
The recommended gate drive voltage and current levels can be found in the datasheet, but as a general guideline, a gate drive voltage of 10-15V and a current of 1-2A is typically recommended for optimal switching performance.
To troubleshoot issues with the device, it is recommended to follow a systematic approach, including checking the power supply, input signals, and output waveforms, as well as verifying the device's configuration and programming. The device's fault detection and protection features can also provide valuable information for troubleshooting.
When using the device in a high-reliability or safety-critical application, it is essential to follow the recommended design and testing guidelines, including fault tree analysis, failure mode and effects analysis (FMEA), and compliance with relevant industry standards and regulations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IR21363JTRPBF Overview

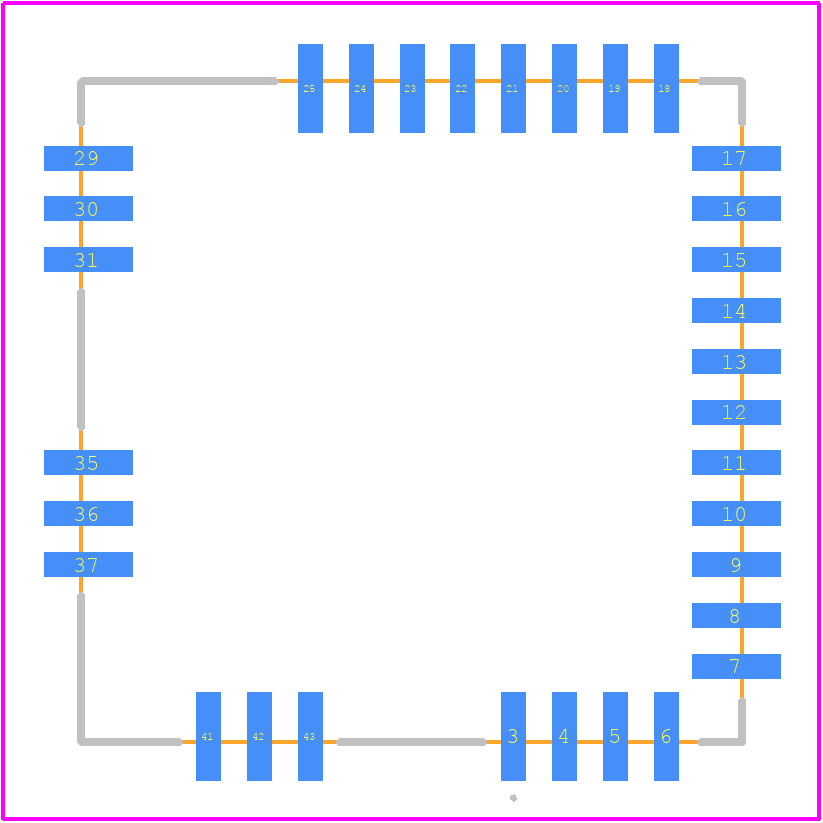

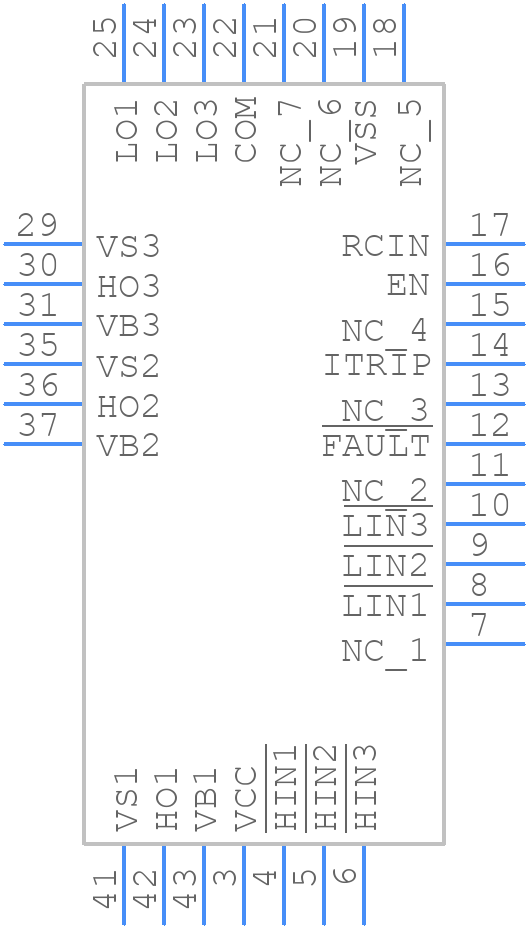

Use the download button to access the IR21363JTRPBF schematic symbol, PCB footprint, and 3D model.
