The maximum operating temperature range for the IR21364STRPBF is -40°C to 125°C.
Proper thermal management can be achieved by providing a heat sink, ensuring good airflow, and using thermal interface materials to reduce thermal resistance.
The recommended PCB layout for the IR21364STRPBF involves keeping the high-current paths short and wide, using multiple vias for heat dissipation, and separating the high-voltage and low-voltage sections.
Overvoltage and undervoltage protection can be achieved using voltage regulators, TVS diodes, and zener diodes to clamp the voltage within the recommended operating range.
The recommended gate drive voltage for the IR21364STRPBF is 10-15V, with a maximum voltage of 20V.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IR21364STRPBF Overview

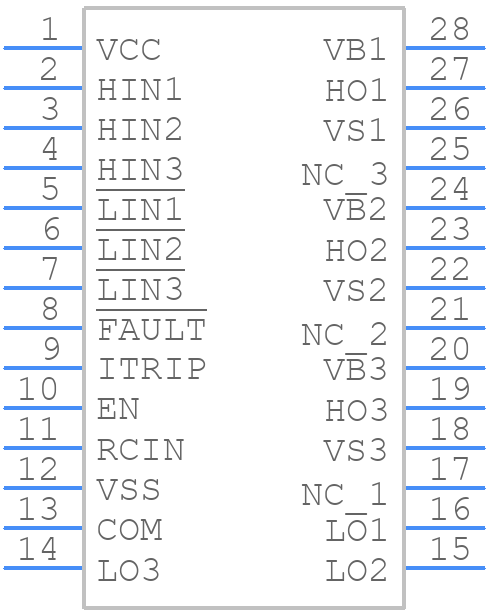

Use the download button to access the IR21364STRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR213,
or try a keyword search, such as MOSFET Drivers
