IR2156STRPBF - Infineon

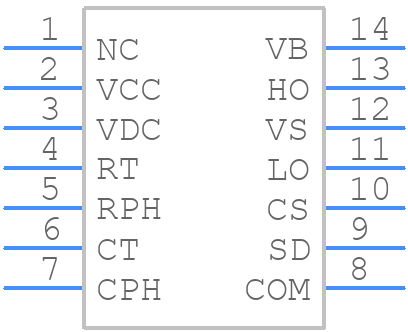

IR2156STRPBF Details

• Manufacturer Part Number:

  IR2156STRPBF

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

  LEAD FREE, MS-012-AB, SOIC-14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  3

• Analog IC - Other Type:

  FLUORESCENT LIGHT CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Input Voltage-Max:

  14.5 V

• Input Voltage-Min:

  11.5 V

• Input Voltage-Nom:

  14.5 V

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e3

• Length:

  8.65 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  0.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Supply Current-Max (Isup):

  10 mA

• Supply Voltage-Nom (Vsup):

  14 V

• Surface Mount:

  YES

• Switcher Configuration:

  PUSH-PULL

• Switching Frequency-Max:

  32 kHz

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
