IR21844PBF - Infineon

Description: Half-Bridge Driver 600V PDIP14 Infineon IR21844PBF, Dual Half Bridge MOSFET Power Driver 2.3A, 10 → 20 V, 14-Pin PDIP

Download IR21844PBF Model

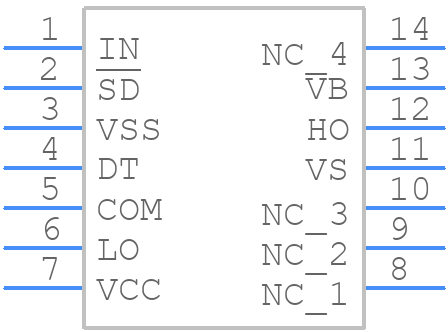

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

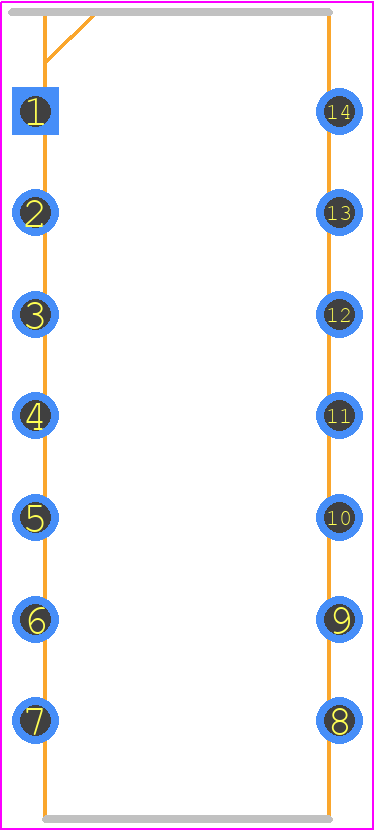

IR21844PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14- Lead PDIP
click to zoom
3D Models
IR21844PBF - Infineon  - 3D model - Dual-In-Line Packages - 14- Lead PDIP
click to zoom

IR21844PBF Details

  • Manufacturer Part Number:

    IR21844PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.305 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.4 µs

  • Turn-on Time:

    0.9 µs

  • Width:

    7.62 mm

IR21844PBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the IR21844PBF is 500 kHz, but it can be operated up to 1 MHz with reduced performance.
  • To ensure the bootstrap capacitor is properly charged, make sure to follow the recommended bootstrap capacitor value and charging resistor value, and ensure the high-side driver is enabled before the low-side driver.
  • The recommended deadtime between the high-side and low-side drivers is typically around 100-200 ns, but this can vary depending on the specific application and requirements.
  • To protect the IR21844PBF from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the supply voltage is within the recommended range, and consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits.
  • The maximum allowable voltage on the VCC pin is 20 V, but it's recommended to keep it below 15 V for reliable operation.
