IR25607STRPBF - Infineon

Description: Gate Drivers 600V High Low Side 2A 10-20V 120 94ns

Download IR25607STRPBF Model

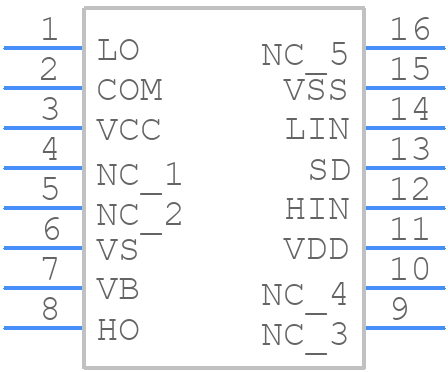

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IR25607STRPBF - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16 lead soic-
click to zoom
3D Models
IR25607STRPBF - Infineon  - 3D model - Small Outline Packages - 16 lead soic-
click to zoom

IR25607STRPBF Details

  • Manufacturer Part Number:

    IR25607STRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8.38

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    620 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.125 µs

  • Turn-on Time:

    0.15 µs

  • Width:

    7.5 mm
