IR3566BMTRPBF - Infineon

Description: INFINEON - IR3566BMTRPBF - DIGITAL MULTI-PHASE CONTROLLER, QFN-48

Download IR3566BMTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

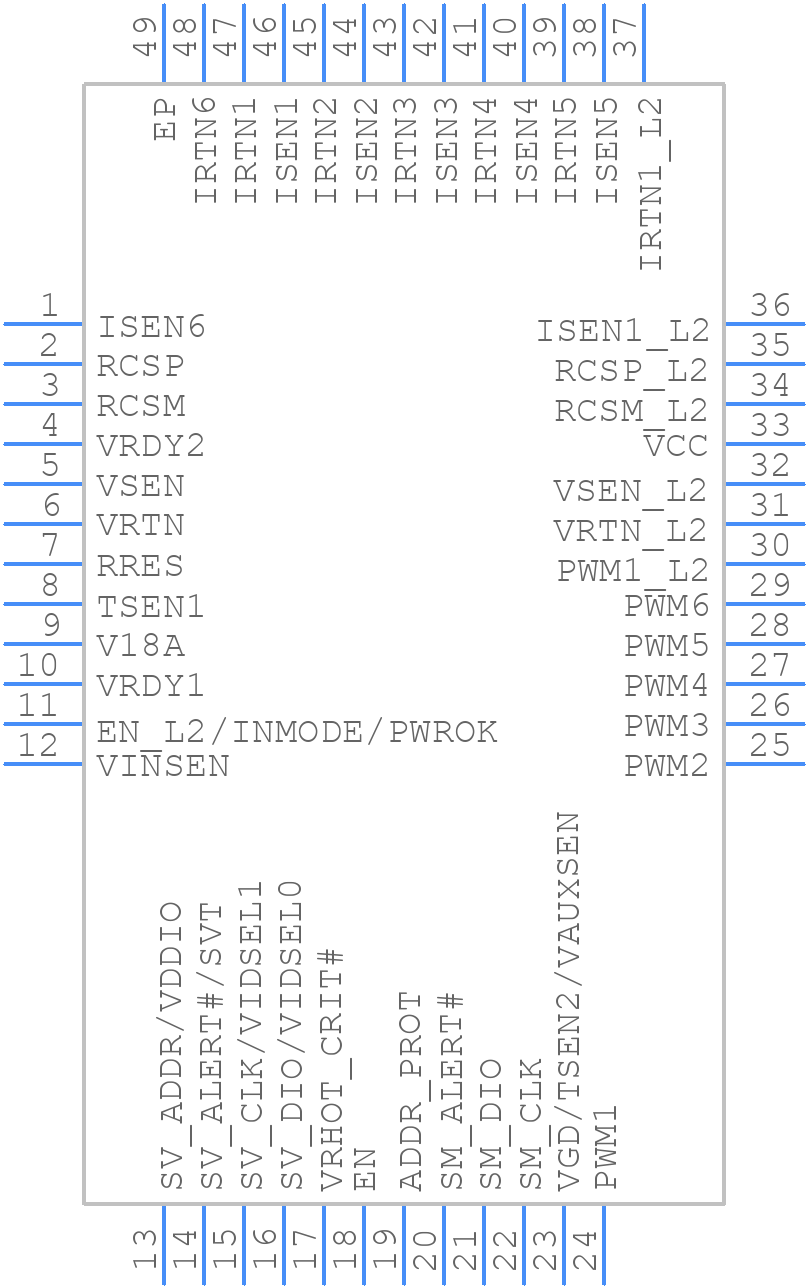

IR3566BMTRPBF - Infineon PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 6x6mm, 48-pin
click to zoom
3D Models
IR3566BMTRPBF - Infineon  - 3D model - Quad Flat No-Lead - QFN 6x6mm, 48-pin
click to zoom

IR3566BMTRPBF Details

  • Manufacturer Part Number:

    IR3566BMTRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    6 mm

IR3566BMTRPBF Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the input voltage rises monotonically and exceeds the UVLO threshold (typically 2.5V) to ensure reliable start-up. For shutdown, ensure that the input voltage falls below the UVLO threshold to prevent unwanted start-up.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ripple.
  • Ensure that the EN pin is driven low during shutdown to minimize standby current. Additionally, use a low-leakage input capacitor and minimize the number of external components to reduce standby power consumption.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for output filtering. The capacitor should be placed as close to the VOUT pin as possible to minimize noise and ripple.
