A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK, and follow the recommended PCB layout guidelines. Also, consider using a thermocouple to monitor the device temperature.
Critical components include the input capacitors, output inductors, and output capacitors. Ensure that these components are selected based on the recommended specifications and layout guidelines to ensure stable operation.
Use an oscilloscope to monitor the input and output waveforms, and check for signs of oscillation or instability. Verify that the PCB layout and component selection meet the recommended guidelines. Consult the datasheet and application notes for troubleshooting guides.
Use a shielded enclosure, ensure proper grounding and shielding of cables, and follow the recommended PCB layout guidelines to minimize EMI radiation. Also, consider using EMI filters or common-mode chokes to reduce emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IR3599MTRPBF Overview

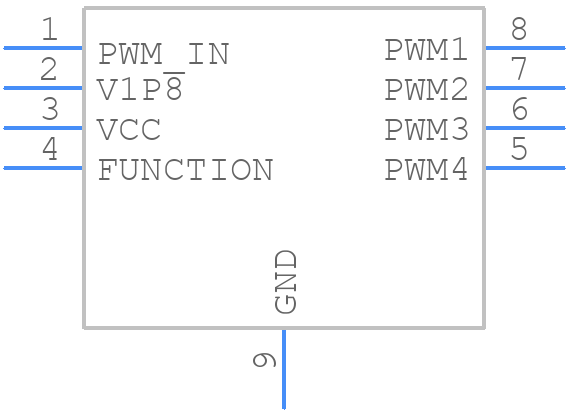

Use the download button to access the IR3599MTRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR359,
or try a keyword search, such as Other Signal Circuits
