Infineon provides a recommended PCB layout in the application note AN-1145, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
The selection of the inductor depends on the specific application requirements, such as output voltage, current, and switching frequency. Infineon provides a inductor selection guide in the application note AN-1146, which includes a step-by-step process for selecting the right inductor.
The maximum junction temperature for the IR38265MTRPBFAUMA1 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
No, the IR38265MTRPBFAUMA1 is designed for isolated DC-DC converter applications, such as flyback or forward converters. It's not suitable for non-isolated DC-DC converter designs.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as X5R or X7R, with a value of 10uF to 22uF. The exact value depends on the specific application requirements and input voltage ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IR38265MTRPBFAUMA1 Overview

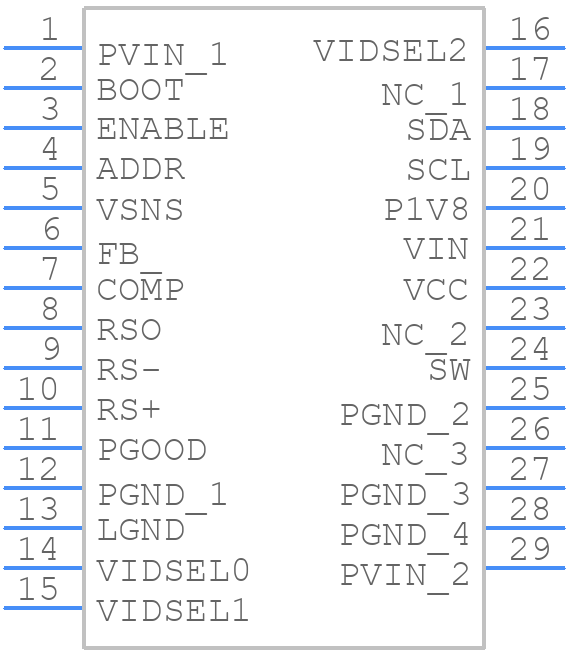

Use the download button to access the IR38265MTRPBFAUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IR382,
or try a keyword search, such as Switching Regulator or Controllers
