IR38363MTRPBFAUMA1 footprint, schematic symbol and 3D model by Infineon

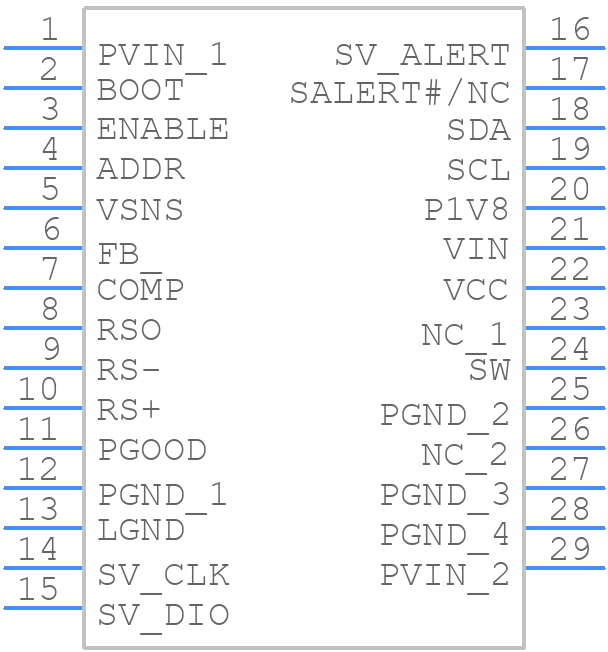

Symbol

click to zoom

PCB Footprints

IR38363MTRPBFAUMA1 - Infineon PCB footprint - Other - Other - PG-IQFN-34

click to zoom

3D Models

IR38363MTRPBFAUMA1 - Infineon - 3D model - Other - PG-IQFN-34

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IR38363MTRPBFAUMA1
Part Number IR38363MTRPBFAUMA1
Manufacturer Infineon
Pin Count 29
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PG-IQFN-34
Released Date Nov 26, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IR38363MTRPBFAUMA1 Details

Manufacturer Part Number:
IR38363MTRPBFAUMA1
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
QFN-26
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
20 Weeks
Date Of Intro:
2017-12-15
Manufacturer:
Infineon Technologies AG
YTEOL:
1
Additional Feature:
OUTPUT VOLTAGE IN ADJUSTABLE MODE RANGE FROM 0.5 TO 14V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
16 V
Input Voltage-Min:
1.5 V
Input Voltage-Nom:
5 V
JESD-30 Code:
R-PXSS-N26
JESD-609 Code:
e4
Length:
7 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
26
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
25 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
CHIP CARRIER
Package Equivalence Code:
LCC26(UNSPEC)
Package Shape:
RECTANGULAR
Package Style:
SPECIAL SHAPE
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
50 mA
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1500 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Position:
UNSPECIFIED
Width:
5 mm
