IR4428PBF - Infineon

Description: DUAL LOW SIDE DRIVER

Download IR4428PBF Model

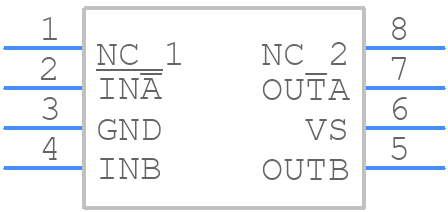

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IR4428PBF - Infineon PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 Lead PDIP
click to zoom
3D Models
IR4428PBF - Infineon  - 3D model - Dual-In-Line Packages - 8 Lead PDIP
click to zoom

IR4428PBF Details

  • Manufacturer Part Number:

    IR4428PBF

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • Length:

    9.88 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    3.3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.15 µs

  • Turn-on Time:

    0.16 µs

  • Width:

    7.62 mm

IR4428PBF Frequently Asked Questions (FAQs)

  • The maximum operating frequency of IR4428PBF is 500 kHz, but it can be used up to 1 MHz with reduced performance.
  • To ensure the bootstrap capacitor is properly charged, make sure the high-side driver is turned off before the low-side driver, and the bootstrap capacitor should be at least 10 times the gate charge of the high-side MOSFET.
  • The recommended dead time between high-side and low-side switching is typically around 100-200 ns to prevent shoot-through current and ensure proper operation.
  • Yes, IR4428PBF can be used with a different voltage supply, but the recommended operating range is 10V to 20V. However, the device's performance and reliability may be affected if operated outside this range.
  • To protect the IR4428PBF from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the supply voltage remains within the recommended operating range.
