IRE-24/5-Q12P-C - Murata Electronics

Description: Isolated DC/DC Converters 5A 24Vout 9-36Vin 1/8th Pos Log STD

Download IRE-24/5-Q12P-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

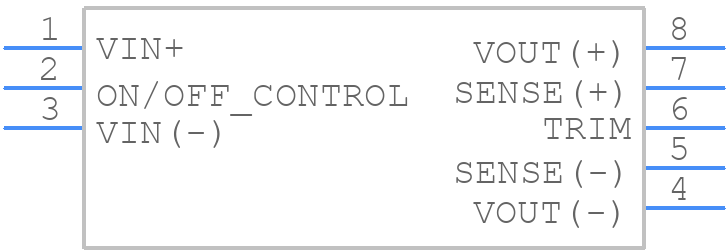

Symbol
IRE-24/5-Q12P-C - Murata Electronics - PCB symbol
click to zoom

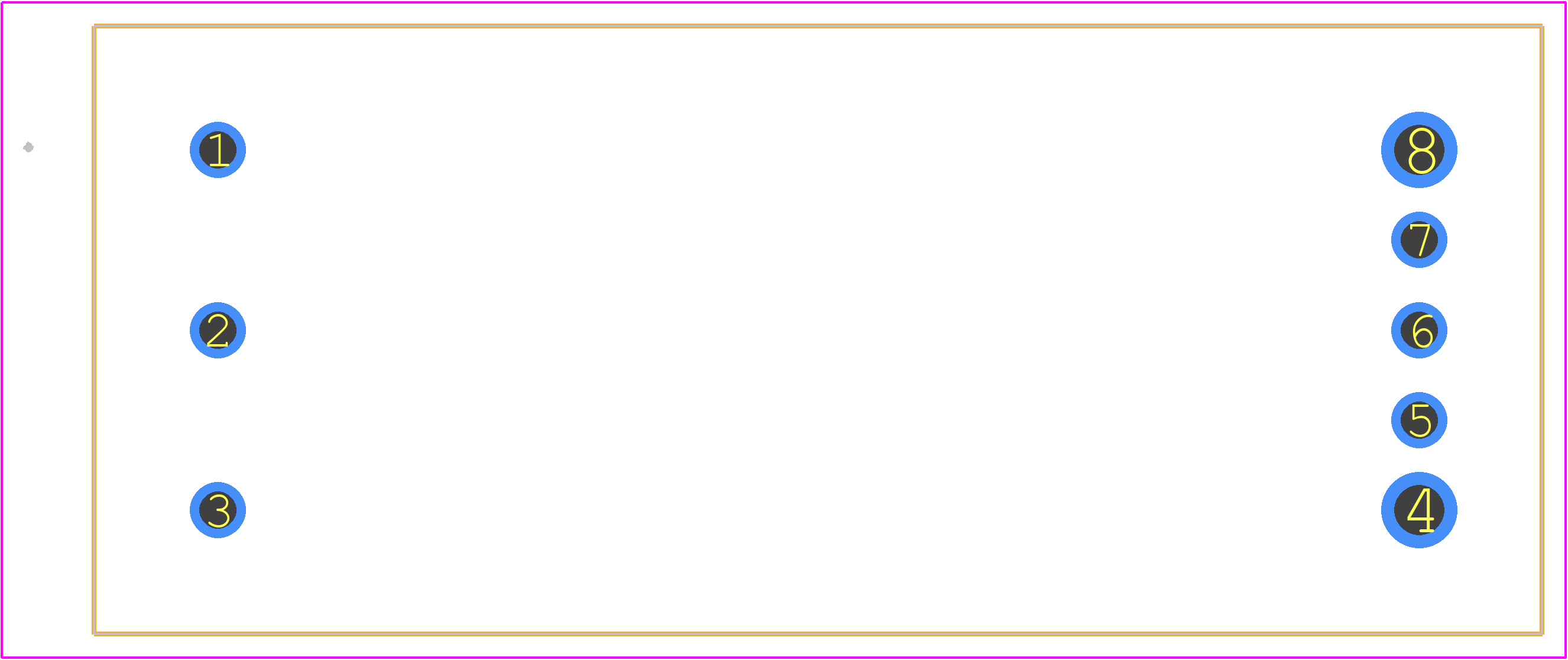

PCB Footprints
IRE-24/5-Q12P-C - Murata Electronics PCB footprint - Other - Other - IRE-24/5-Q12P-C-1
click to zoom
3D Models
IRE-24/5-Q12P-C - Murata Electronics - 3D model - Other - IRE-24/5-Q12P-C-1
click to zoom

IRE-24/5-Q12P-C Details

  • Manufacturer Part Number:

    IRE-24/5-Q12P-C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1/8 BRICK PACKAGE-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    36 Weeks

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    UNDER VOLTAGE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CAN; CSA; C-UL-US; EN; IEC; UL

  • Efficiency (Main Output):

    92%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDMA-P8

  • Length:

    61.2 mm

  • Line Regulation-Max:

    0.4%

  • Load Regulation-Max:

    0.4%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    19.2 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,8LEAD,2

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Packing Method:

    TRAY

  • Protections:

    OVER CURRENT; OVER TEMPERATURE; OVER VOLTAGE; REVERSE POLARITY; SCP

  • Ripple Voltage (Main Out):

    0.0848 Vrms

  • Screening Level:

    UL 62368-1

  • Seated Height-Max:

    13.34 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    120 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.05 s

  • Width:

    25.7 mm

IRE-24/5-Q12P-C Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize electromagnetic interference, and prevent thermal issues.
  • The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and ripple current. Murata provides guidance on capacitor selection in their application notes and design guides. Additionally, capacitor manufacturers like Murata, TDK, and Rubycon provide capacitor selection tools and guidelines.
  • The maximum ambient temperature for the IRE-24/5-Q12P-C is 85°C. Operating the converter above this temperature can reduce its efficiency, increase thermal stress, and affect its reliability. It's essential to ensure proper cooling and thermal management to maintain optimal performance.
  • To ensure EMC, follow Murata's guidelines for PCB layout, component placement, and shielding. Additionally, use appropriate EMI filters, and consider using a metal shield or enclosure to minimize electromagnetic radiation. It's also essential to perform EMC testing to ensure compliance with relevant standards.
  • The typical efficiency of the IRE-24/5-Q12P-C is around 85-90% depending on the input voltage and load current. Efficiency varies with input voltage and load current, and Murata provides efficiency curves in their datasheet and application notes. It's essential to consider these curves when designing the power supply system.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRE-24/5-Q12P-C Overview

Use the download button to access the IRE-24/5-Q12P-C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRE-2, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
