IRF7480MTRPBF - Infineon

Description: Infineon IRF7480MTRPBF N-channel MOSFET, 330 A, 40 V DirectFET, 6+Tab-Pin ME

Download IRF7480MTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

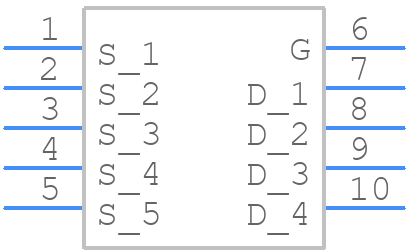

Symbol
IRF7480MTRPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRF7480MTRPBF - Infineon PCB footprint - Other - Other - IRF7480MTRPBF-5
click to zoom
3D Models
IRF7480MTRPBF - Infineon - 3D model - Other - IRF7480MTRPBF-5
click to zoom

IRF7480MTRPBF Details

  • Manufacturer Part Number:

    IRF7480MTRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    206 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    217 A

  • Drain-source On Resistance-Max:

    0.0012 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XBCC-N6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    868 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRF7480MTRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRF7480MTRPBF is -55°C to 175°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
  • The recommended gate drive voltage for the IRF7480MTRPBF is between 10V and 15V, with a maximum gate-source voltage of ±20V.
  • To protect the IRF7480MTRPBF from ESD, handle the device with anti-static wrist straps, mats, or bags, and ensure that the device is stored in anti-static packaging.
  • The maximum allowable power dissipation for the IRF7480MTRPBF is 150W, but this value can be derated based on the operating temperature and other factors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRF7480MTRPBF Overview

Use the download button to access the IRF7480MTRPBF schematic symbol, PCB footprint, and 3D model.
