IRF7749L1TRPBF - Infineon

Description: IRF7749L1TRPBF N-Channel MOSFET, 375 A, 60 V DirectFET, HEXFET, 15-Pin DirectFET Infineon

Download IRF7749L1TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

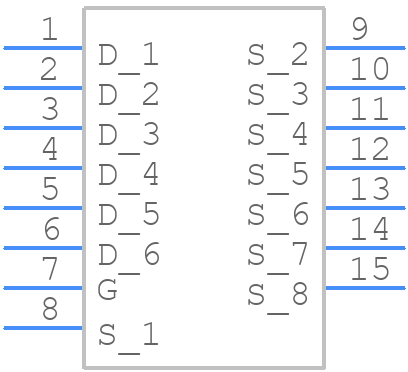

IRF7749L1TRPBF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRF7749L1TRPBF - Infineon PCB footprint - Other - Other - DirectFET Isometric L8
click to zoom
3D Models
IRF7749L1TRPBF - Infineon - 3D model - Other - DirectFET Isometric L8
click to zoom

IRF7749L1TRPBF Details

  • Manufacturer Part Number:

    IRF7749L1TRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Drain Current-Max (ID):

    375 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Operating Temperature-Max:

    175 °C

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    125 W

  • Surface Mount:

    YES

IRF7749L1TRPBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRF7749L1TRPBF is -55°C to 150°C.
  • Yes, the IRF7749L1TRPBF is a logic-level MOSFET, which means it can be driven directly from a microcontroller or other low-voltage logic source.
  • The maximum current rating for the IRF7749L1TRPBF is 120A.
  • No, the IRF7749L1TRPBF is not a radiation-hardened device. It is not designed for use in high-radiation environments.
  • The typical turn-on time for the IRF7749L1TRPBF is around 10ns, and the typical turn-off time is around 20ns.
