The recommended antenna design for optimal performance is a quarter-wave monopole antenna with a length of around 15-20 mm, and a width of around 2-3 mm. The antenna should be placed at least 10 mm away from any metal components or shields.
To configure the module for low power consumption, you can use the AT command set to set the power mode to 'Power Save' or 'Deep Sleep'. You can also adjust the transmission power, data rate, and other parameters to optimize power consumption. Additionally, consider using the module's built-in power management features, such as the ability to power down the module when not in use.
The maximum operating temperature range for the IRIS-W106-00B module is -40°C to +85°C. However, it's recommended to operate the module within a temperature range of -20°C to +70°C for optimal performance and reliability.
To ensure reliable data transmission over the cellular network, make sure to use a stable and reliable cellular connection, and implement error correction mechanisms such as checksums and retries. Additionally, consider using the module's built-in features such as packet switching and data compression to optimize data transmission.
The IRIS-W106-00B module is certified for use in various regions and countries, including the EU, US, and Canada. However, it's the responsibility of the product manufacturer to ensure that their product meets all relevant certification and regulatory requirements, such as FCC, CE, and IC. Consult with u-blox AG and relevant regulatory bodies for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IRIS-W106-00B Overview

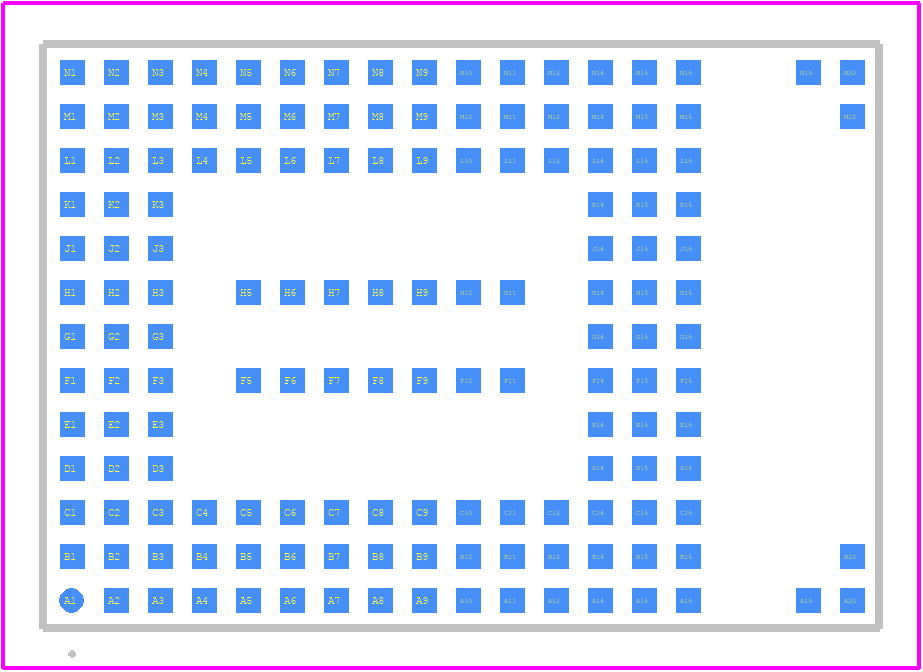

Use the download button to access the IRIS-W106-00B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRIS-,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
