IRL7486MTRPbF - Infineon

Description: N-channel Power MOSFET 40V 209A SMT ME6 Infineon IRL7486MTRPbF N-channel MOSFET Transistor, 209 A, 40 V, 7-Pin DirectFET

Download IRL7486MTRPbF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

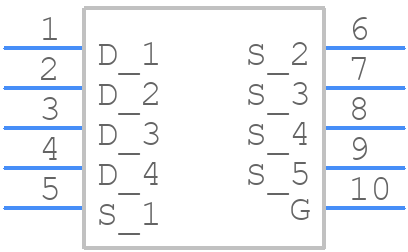

IRL7486MTRPbF - Infineon - PCB symbol
click to zoom
PCB Footprints
IRL7486MTRPbF - Infineon PCB footprint - Other - Other - IRL7486MTRPbF-2
click to zoom
3D Models
IRL7486MTRPbF - Infineon - 3D model - Other - IRL7486MTRPbF-2
click to zoom

IRL7486MTRPbF Details

  • Manufacturer Part Number:

    IRL7486MTRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    190 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    209 A

  • Drain-source On Resistance-Max:

    0.00125 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XBCC-N6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    836 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IRL7486MTRPbF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IRL7486MTRPBF is -40°C to 150°C.
  • To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
  • To minimize EMI, it's recommended to use a multi-layer PCB with a solid ground plane, keep the device as close to the heat sink as possible, and use shielded cables for connections.
  • The IRL7486MTRPBF is rated for a maximum drain-source voltage of 30V. If your application requires higher voltages, you may need to consider a different device or add external voltage protection.
  • You can use external protection devices such as fuses, current sensors, and overvoltage protection (OVP) circuits to protect the IRL7486MTRPBF from overcurrent and overvoltage conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IRL7486MTRPbF Overview

Use the download button to access the IRL7486MTRPbF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRL74, or try a keyword search, such as Power Field-Effect Transistors
