IRM-01-12S footprint, schematic symbol and 3D model by Mean Well

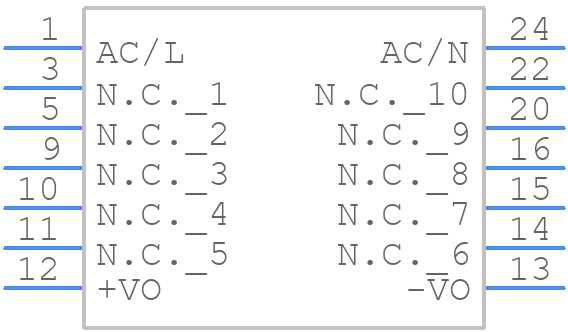

Symbol

click to zoom

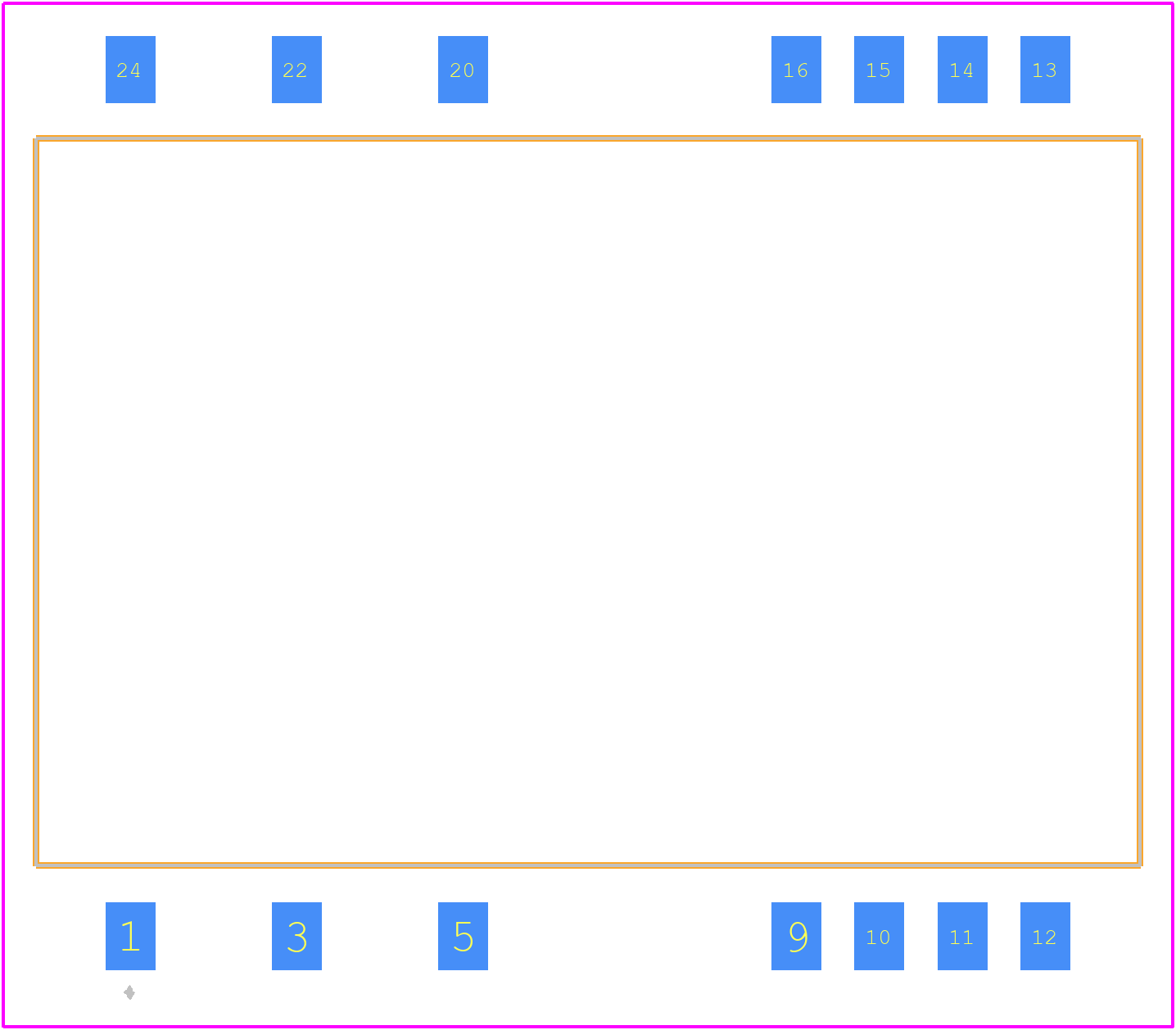

PCB Footprints

IRM-01-12S - Mean Well PCB footprint - Other - Other - IRM-01-12S-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IRM-01-12S
Part Number IRM-01-12S
Manufacturer Mean Well
Pin Count 14
Part Category Power Supply
Package Category Other
Footprint Name Other - IRM-01-12S-1
Released Date Jul 30, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IRM-01-12S Details

Manufacturer Part Number:
IRM-01-12S
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
19 Weeks, 3 Days
Manufacturer:
Mean Well
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE

IRM-01-12S Frequently Asked Questions (FAQs)

The maximum ambient temperature for the IRM-01-12S is 70°C, but it can be derated to 50°C for high reliability applications.
Yes, the IRM-01-12S is designed to operate in humid environments, but it's recommended to add conformal coating or potting to ensure reliability in extreme humidity conditions.
The recommended input fuse value for the IRM-01-12S is 1A to 2A, depending on the specific application and input voltage.
Yes, you can parallel multiple IRM-01-12S modules to increase the output current, but it's recommended to add external components to ensure current sharing and stability.
The MTBF of the IRM-01-12S is approximately 2.5 million hours, calculated according to MIL-HDBK-217F.

Trust Checks

Expert Contribution

System Verified

Community Approved

IRM-01-12S Overview

Use the download button to access the IRM-01-12S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IRM-0, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
