- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for IRM-01-3.3
- Part Number IRM-01-3.3
- Manufacturer Mean Well
- Pin Count 4
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - IRM-01
- Released Date Oct 24, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
IRM-01-3.3 Details
-
Manufacturer Part Number:
IRM-01-3.3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
19 Weeks, 3 Days
-
Manufacturer:
Mean Well
-
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
-
Peak Reflow Temperature (Cel):
NOT SPECIFIED
-
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
IRM-01-3.3 Frequently Asked Questions (FAQs)
-
The maximum capacitance load for the IRM-01-3.3 is 2200uF. Exceeding this value may cause instability or oscillation.
-
The IRM-01-3.3 is rated for operation up to 80°C, but derating is required above 60°C. Consult the datasheet for derating curves.
-
The IRM-01-3.3 meets various safety certifications, including UL, CE, and IEC. However, specific certifications may require additional testing or documentation. Consult Mean Well or a certified test lab for assistance.
-
Follow good PCB design practices, keeping the input and output capacitors close to the module. Ensure good thermal conduction and airflow around the module.
-
Yes, but with caution. Ensure the modules are identical and properly synchronized to avoid oscillation. Consult Mean Well or a qualified engineer for guidance.
Trust Checks
Expert Contribution
System Verified
Community Approved
IRM-01-3.3 Overview

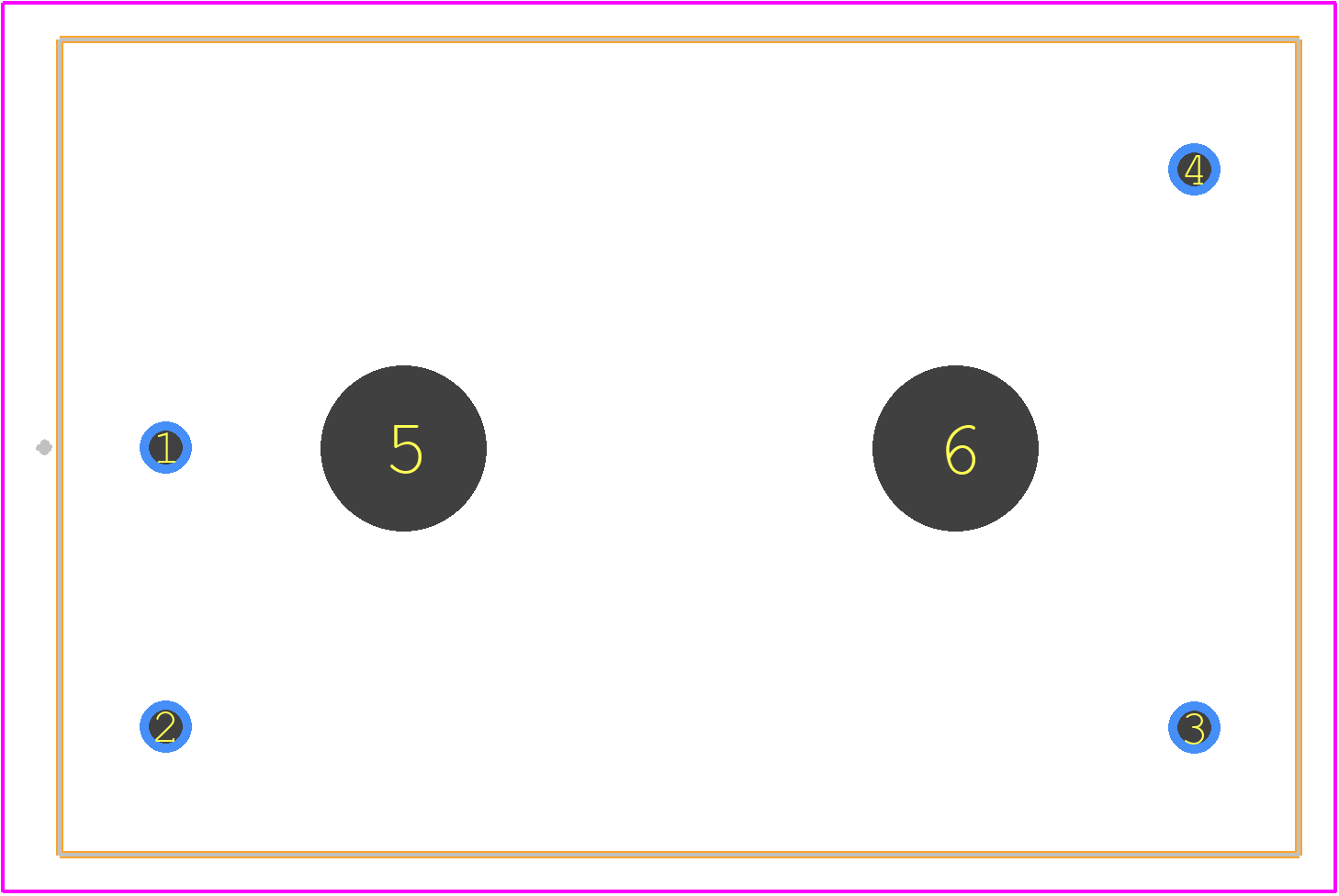

Use the download button to access the IRM-01-3.3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRM-0,
or try a keyword search, such as Power Supply Modules
About Mean Well
MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
