IRM-02-12S footprint, schematic symbol and 3D model by Mean Well

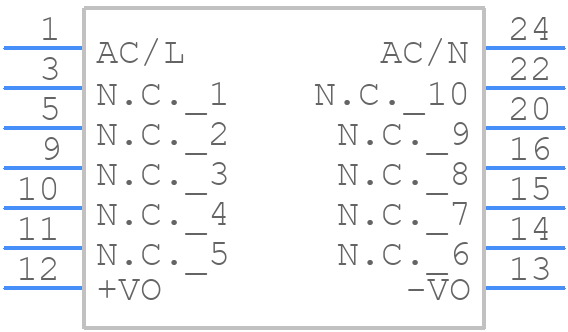

Symbol

click to zoom

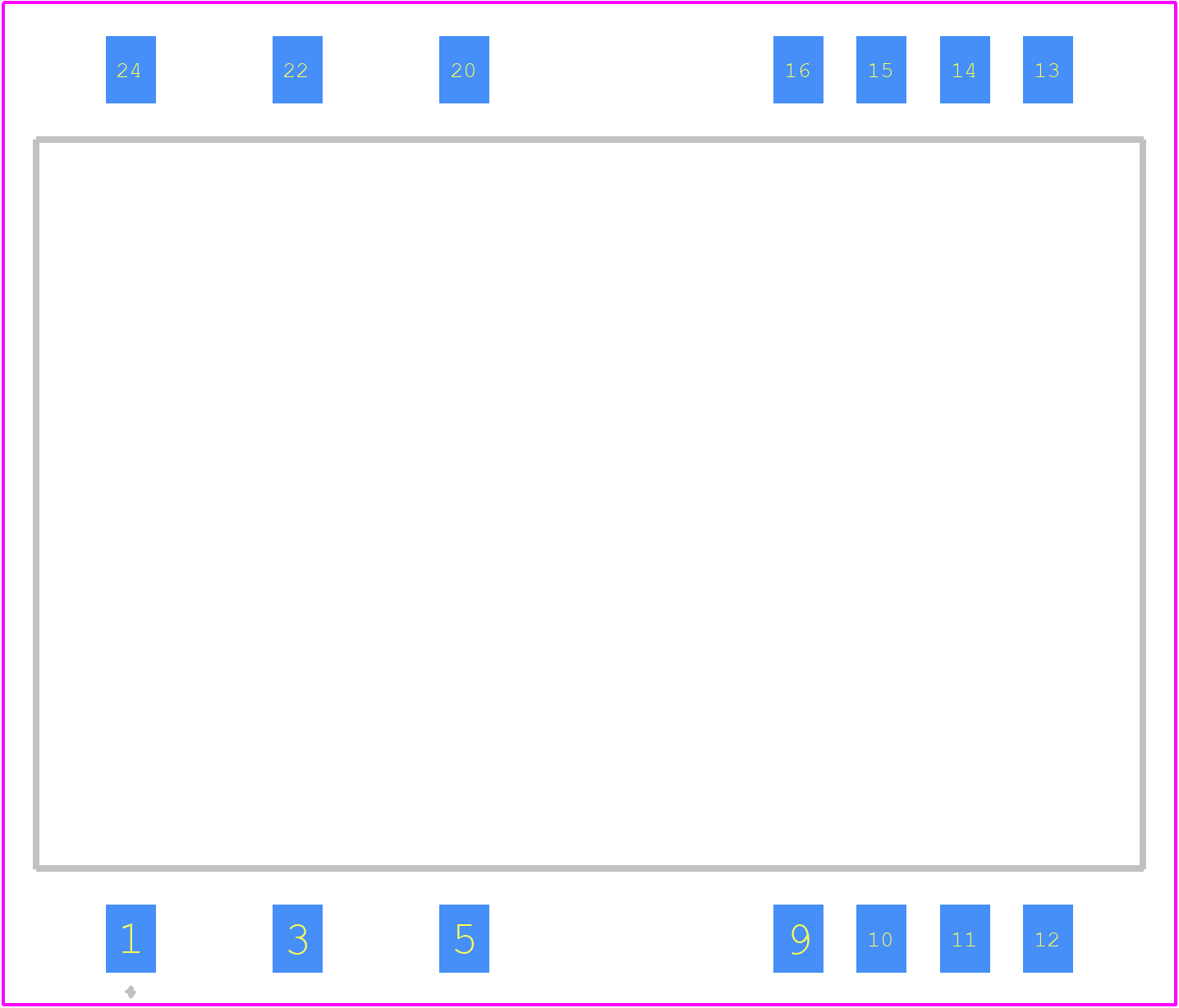

PCB Footprints

IRM-02-12S - Mean Well PCB footprint - Other - Other - IRM-02-12S-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IRM-02-12S
Part Number IRM-02-12S
Manufacturer Mean Well
Pin Count 14
Part Category Power Supply
Package Category Other
Footprint Name Other - IRM-02-12S-2
Released Date Dec 23, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IRM-02-12S Details

Manufacturer Part Number:
IRM-02-12S
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Factory Lead Time:
19 Weeks, 3 Days
Date Of Intro:
2020-10-12
Manufacturer:
Mean Well
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED

IRM-02-12S Frequently Asked Questions (FAQs)

The maximum ambient temperature for the IRM-02-12S is 70°C, but it can be derated to 50°C for high reliability applications.
Yes, the IRM-02-12S is designed to operate in humid environments, but it's recommended to use a conformal coating or potting to protect the module from moisture.
The IRM-02-12S requires a minimum load of 10% of the maximum rated output current to maintain stability and regulation.
Yes, you can parallel multiple IRM-02-12S modules to increase the output power, but it's recommended to use a current sharing circuit to ensure equal current distribution.
The MTBF of the IRM-02-12S is approximately 2.5 million hours at 25°C, calculated according to MIL-HDBK-217F.

Trust Checks

Expert Contribution

System Verified

Community Approved

IRM-02-12S Overview

Use the download button to access the IRM-02-12S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IRM-0, or try a keyword search, such as Power Supply Modules

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
