- Part Number IRM-02-3.3S
- Manufacturer Mean Well
- Pin Count 14
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - IRM-02
- Released Date Dec 19, 2018
- Last Modified Date Dec 18, 2024 8:37 AM UTC
- Pinout / Pin List Click Here (Member Only)
IRM-02-3.3S Details
-
Manufacturer Part Number:
IRM-02-3.3S
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Factory Lead Time:
19 Weeks, 3 Days
-
Date Of Intro:
2020-10-12
-
Manufacturer:
Mean Well
-
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
-
Peak Reflow Temperature (Cel):
NOT SPECIFIED
-
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
IRM-02-3.3S Frequently Asked Questions (FAQs)
-
The maximum ambient temperature for the IRM-02-3.3S is 85°C, but it's recommended to keep it below 70°C for optimal performance and reliability.
-
While the IRM-02-3.3S is designed to operate in a wide range of temperatures, it's not recommended to use it in humid environments above 80% RH. If you must use it in a humid environment, ensure proper ventilation and consider adding a conformal coating to protect the device.
-
The IRM-02-3.3S requires a minimum load of 10% of the maximum rated output current to maintain stability and regulation. If the load is too light, the output voltage may not be regulated properly.
-
While it's technically possible to parallel multiple IRM-02-3.3S modules, it's not recommended as it may lead to uneven current sharing and reduced reliability. Instead, consider using a single higher-power module or a different power supply design.
-
The typical efficiency of the IRM-02-3.3S is around 75-80% at full load, depending on the input voltage and operating conditions. This means that for every 100mW of input power, the module will dissipate around 20-25mW as heat.
Trust Checks
Community Provided
System Verified
Community Approved
IRM-02-3.3S Overview

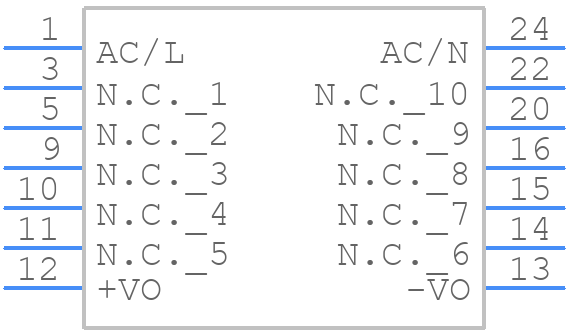

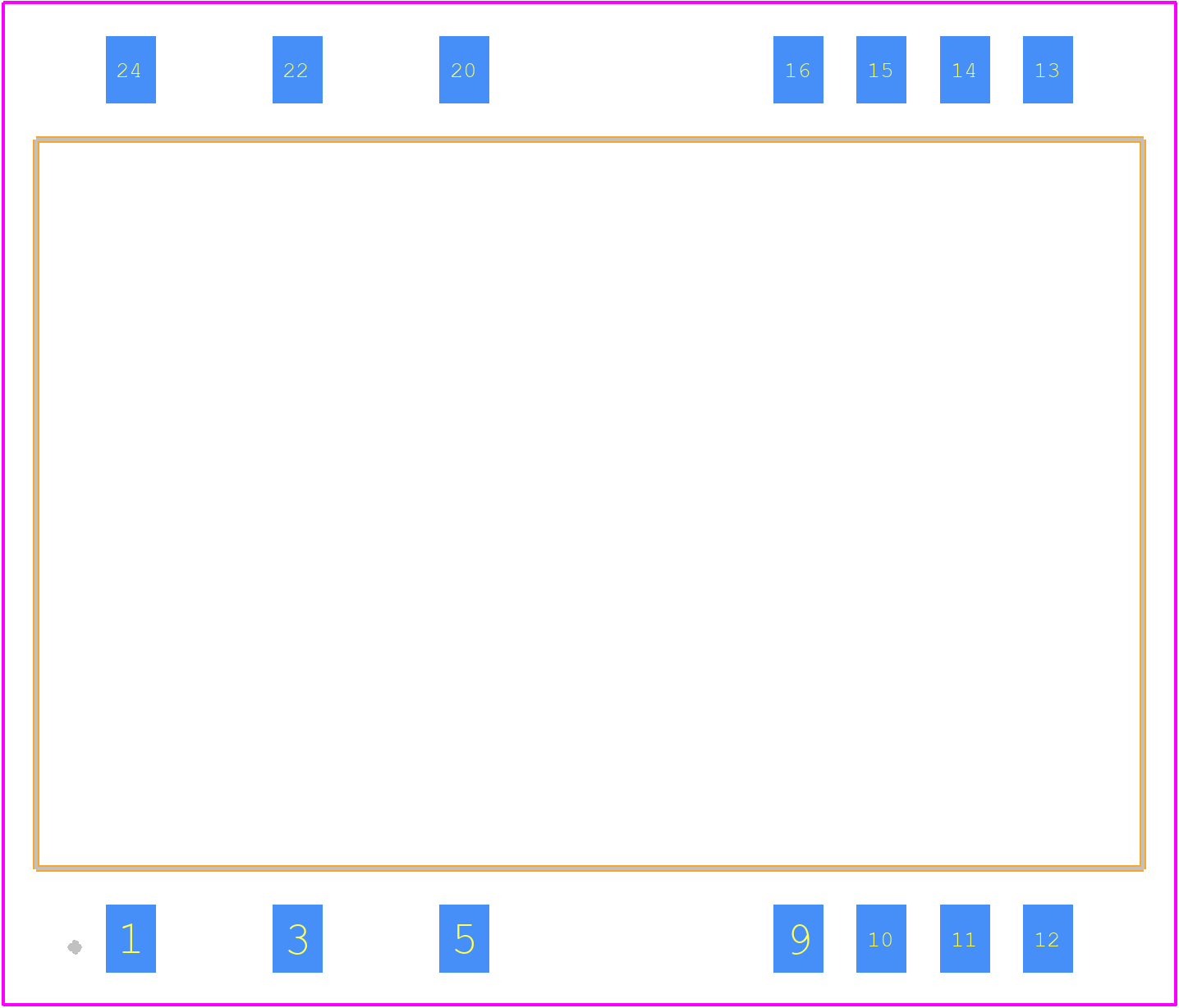

Use the download button to access the IRM-02-3.3S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IRM-0,
or try a keyword search, such as Power Supply Modules
